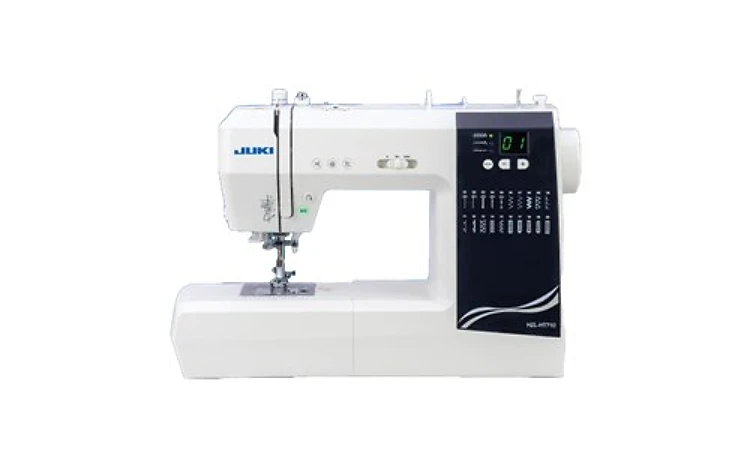

The JUKI HZL-HT710 is designed to provide a firm and consistent sewing experience. The Needle Up/Down Position Button allows you to change the needle position instantly, and you can even sew a half stitch.
The machine also features a Presser Foot Pressure adjustment for comfortable feed when sewing thin or thick fabrics. The machine sews buttonholes automatically according to the size of the button, making your work easier.
The machine also allows you to change the size of stitch patterns as well as the needle positions. The foot controller comes with a needle up and down feature, allowing you to quickly change the needle position.
Main Features
Automatic Thread Trimming Function
This feature ensures that both the upper and lower threads are trimmed simultaneously with a single action, saving you time and reducing thread wastage.
Thread Cutter Button
This button provides a quick and easy way to trim the upper and lower threads.

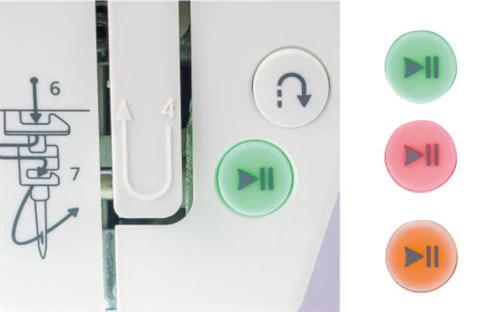

Start/Stop Button with Color Indicators
The machine's operational status is clearly indicated by the color of the start/stop button. Green signifies readiness to start or that sewing is in progress, red indicates the machine is not ready to start, and orange shows that the machine is in bobbin winding condition.
Quick Bobbin Preparation
This feature simplifies bobbin preparation. Just follow the guide; there's no need to pull up the bobbin thread.

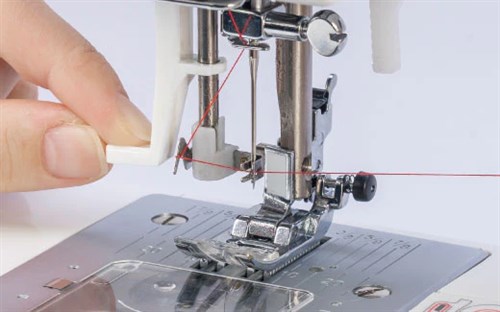

Automatic Needle Threader
This feature allows for easy threading of the needle, enabling you to start sewing quickly.
Lock Stitch/Pattern Completion Lock Stitch
With a simple button press, you can sew a locking stitch at the beginning or end of sewing. If you press the button while sewing a pattern, the machine will stop after completing one cycle of the pattern.

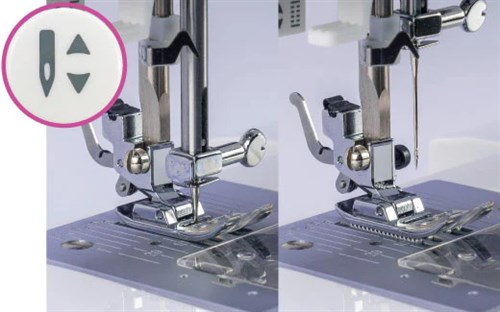

Needle Up/Down Position Button
This button allows you to instantly change the up/down position of the needle. You can also change the needle stop position and even sew a half stitch.

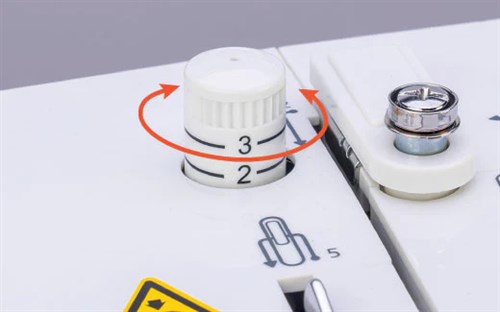

Adjustable Presser Foot Pressure
This feature ensures comfortable feed when sewing thin or thick fabrics.

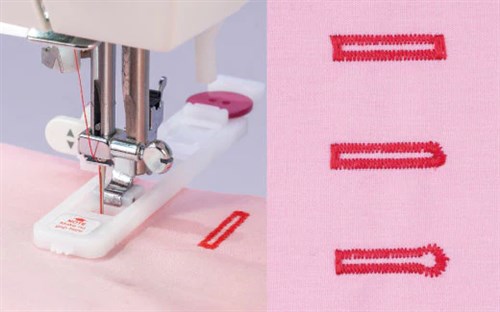

Automatic Buttonhole
The HZL-HT710 automatically sews a buttonhole according to the size of the button.
Adjustable Stitch Pattern Size and Needle Position
You have the flexibility to change the size of stitch patterns as well as the needle positions.
Foot Controller with Needle Up and Down Feature
With a quick press on the foot controller, you can change the needle position to go up or down into the fabric.
Basic Features
- Free Arm
- Drop-in Bobbin
- Drop Feed
- Easy to Start Sewing Thick Fabrics
- Button Sewing
- Reverse Button
- LED Lighting
Sewing Features
- Maximum Sewing Speed:70-800 stitches per minute
- Number of Stitch Patterns:60 built-in stitch patterns
- Automatic Buttonhole:Buttonhole length up to 3.0 cm
- Start/Stop Button:Convenient control of sewing without using the foot pedal
- Auto Thread Trimming:Automatically trims the upper and lower threads simultaneously
- Thread Cutter:Quickly trims both the upper and lower threads with a single action
- Automatic Needle Threader:Makes threading the needle quick and effortless
- Thread Tension System:Standard system ensures consistent stitching
- Needle Up/Down Button:Instantly changes the needle’s position
- Reverse Stitch (Button System):Reinforces seams with ease
- Reinforcement Stitch (Button System):Adds durability at start/end of seams
- Feed Mechanism:7-point feed dog for smooth fabric handling
- Presser Foot Pressure Adjustment:Stepless adjustment for thin or thick fabrics
- Presser Foot Lift:Lever system: 6 mm / 11 mm
- Horizontal Presser Foot Holder Button:Improves convenience when changing feet
- Drop Feed:Enables free-motion sewing and quilting
- Quick Bobbin Preparation:No need to pull up the bobbin thread
- Stitch Length:Maximum 4.5 mm
- Stitch Width:Maximum 7 mm
- Needle Positions:15 positions for straight stitch / multiple for other stitches
- Light:1 LED light illuminates the sewing area
- Type of Hook:Horizontal hook
- Free Arm:Ideal for cuffs, hems, and tubular items
- Foot Controller:Hands-free sewing control
- Wide Table (Option):Optional accessory for larger projects
- Auxiliary Bed:Extra storage and workspace
- Soft Cover:Protects the machine when not in use
Accessories
- Standard Presser Foot
- Zipper Foot
- Satin Stitch Foot
- Overcasting Foot
- Blind Hem Foot
- Button Sewing Foot
- Buttonhole Foot
- Seam Ripper/Brush
- Screwdriver:L & S
- Second Spool Pin
- Pack of Needles:3 pcs
- Edge/Quilting Guide
- Spool Holder:L & S
- Spool Pin Felt
- Stitch Pattern Plate Clip
- Bobbin:3 pcs
Dimensions
- Machine Dimensions:425(W) x 300(H) x 170(D) mm
- Machine Weight:5.9 kg
