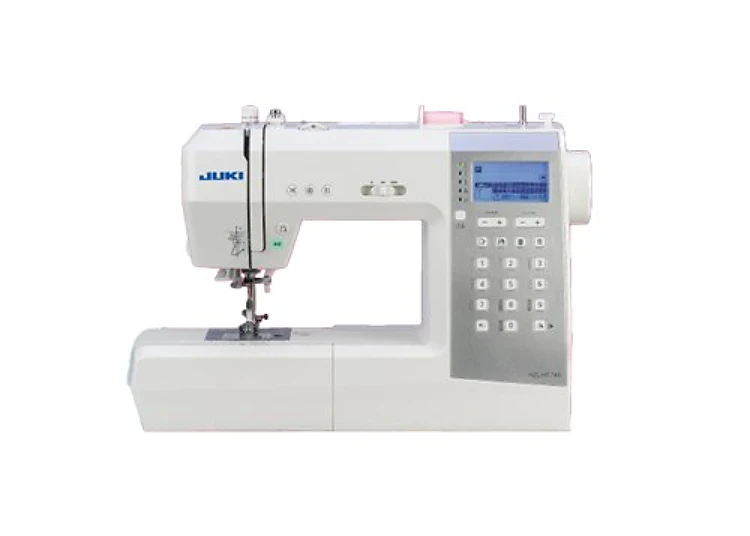

The JUKI HZL-HT740 is a computerized sewing machine designed for precision, durability, and ease of use.
With 116 stitch patterns, 2 alphabetic/numeric fonts, and an automatic thread trimming function, it brings professional-level sewing power into home projects.
Built with comfort in mind, it offers an LCD screen, direct stitch selection, quick bobbin preparation, and enhanced sewing control.
Supported by a heavy-duty frame and high-performance motor, this machine is perfect for quilting, garment construction, and creative projects.
Main Features
Auto Thread Trimming Function
This feature automatically trims both the upper and lower threads simultaneously. It's designed to save you time and thread, enhancing your sewing efficiency.

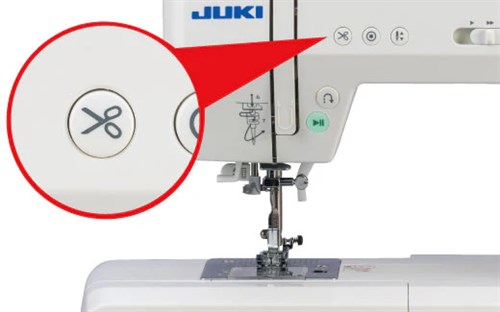

Thread Cutter Button
With a simple press of a button, both the upper and lower threads are trimmed. This feature complements the Auto Thread Trimming Function, making your sewing process smoother.

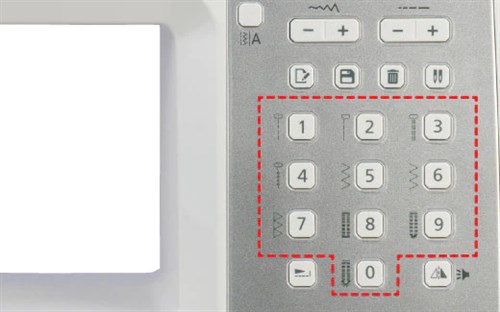

Direct Pattern Selection
The machine offers 10 types of stitch patterns, which can be selected directly by pressing the corresponding pattern button. This feature simplifies the process of choosing your desired stitch pattern.

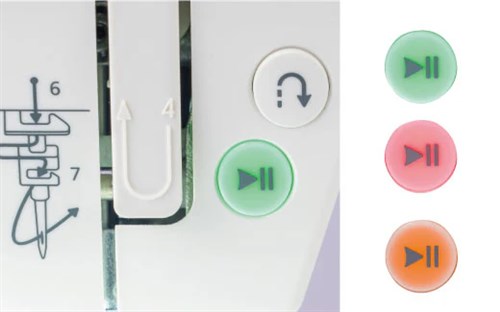

Start/Stop Button
The color-coded start/stop button indicates the MACHINE's status. Green means it's ready to start or is sewing, red indicates it's not ready to start, and orange signifies the machine is in bobbin winding condition.

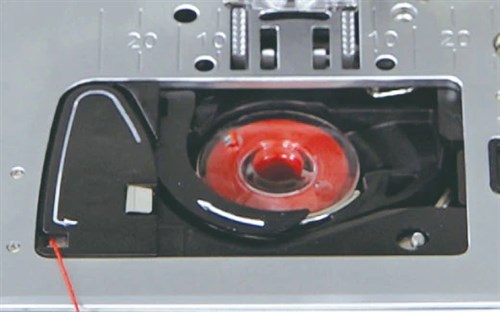

Quick Bobbin Preparation
This feature simplifies the bobbin preparation process. You just need to follow the guide, and there's no need to pull up the bobbin thread.

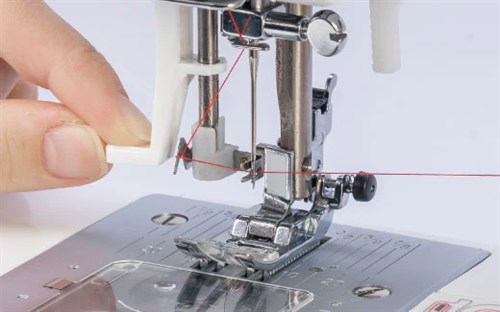

Auto Needle Threader
This feature effortlessly threads the needle, eliminating eye strain and saving you time.
Lock Stitch/Pattern Completion Lock Stitch
With this feature, you can sew a locking stitch with just a press of a button at the beginning or end of sewing. If you press the button while sewing a pattern, the machine stops after sewing one cycle of the pattern.
Adjustable Stitch Length and Width
You can customize the appearance of a stitch by increasing or decreasing the distance between stitches. The size of the stitch from left to right is also adjustable, allowing you to make the stitch sew narrower or wider as desired.
Heavy Duty Metal Frame
The machine's interior frame is made of metal, providing long-lasting durability.
Stainless Steel Bed Plate
The surface of the machine's arm is made of stainless steel, providing a smooth surface that allows your fabrics to glide smoothly as you sew.
High-Performance Motor
The machine is equipped with a motor that is 60% stronger than a standard sewing machine motor, allowing you to sew at higher speeds up to 1100 stitches per minute.
LED Lighting
The machine features long-lasting LED lighting that provides bright illumination and stays cool to the touch.
LCD Screen
The LCD screen clearly displays your selected stitch as well as stitch settings for length and width.
Free Arm
This feature allows you to slide off the Removable Storage Compartment for access to the free arm, making it easy to sew trouser hems, sleeve cuffs, and other smaller or tubular projects.
Sewing Space (Needle to Tower)
The distance between the needle and the main part of the machine is 6.4", providing a generous "C" space that allows you to sew larger projects like quilts with ease.
Basic Features
- Free Arm
- Drop-in Bobbin
- Drop Feed
- Easy to Start Sewing Thick Fabrics
- Button Sewing
- Reverse Button
- LED Lighting
- Sound Button
Sewing Features
- Maximum sewing speed 70-800 stitches/min
- 116 Stitch Patterns
- 2 Alphabetic/numeric font

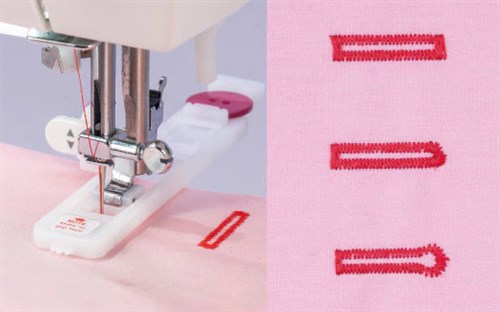

- Buttonhole Automatic Buttonhole Length: - 3.0cm
- Direct stitch pattern selection
- Start/stop button
- Auto thread trimming
- Thread cutter
- Automatic needle threader
- Thread tension system Standard

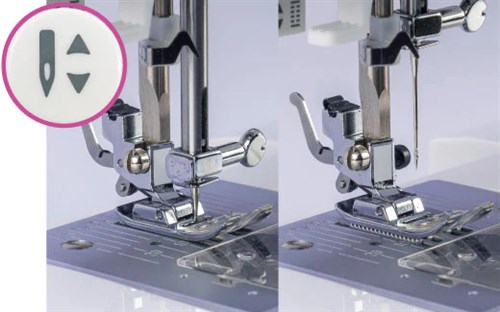

- Needle up/down button
- Reverse stitch (Button system)
- Reinforcement stitch (Button system)
- Feed mechanism 7 point feed dog
- JUKI Smart Feed (dual feed function) -

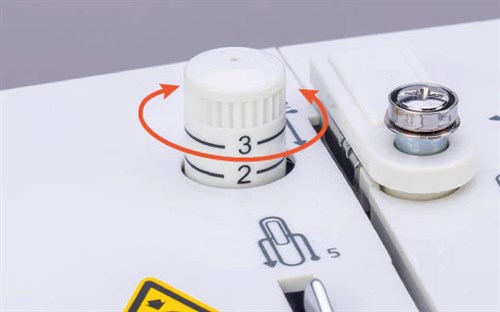

- Stepless presser foot pressure adjustment
- Presser foot lift (1 step/2 steps) Lever system: 6mm / 11mm
- Horizontal presser foot holder button
- Drop feed
- Quick bobbin preparation
- Stitch length Max. 4.5mm
- Stitch width Max. 7mm
- 15 straight stitch needle positions
- Pattern reverse left/right
- Twin needle sewing
- Elongation
- 2 save/call patterns
- 1 LED light
- Type of hook Horizontal hook
- Free arm
- Foot controller
- Wide table Option
- Auxiliary bed for storage
- Soft cover
Accessories
- Standard Presser Foot
- Zipper Foot
- Satin Stitch Foot
- Overcasting Foot
- Blind Hem Foot
- Button Sewing Foot
- Buttonhole Foot
- Seam Ripper/Brush
- Screwdriver (L & S)
- Second Spool Pin
- Pack of Needles (3x)
- Edge/Quilting Guide
- Spool Holder (L & S)
- Spool Pin Felt
- Stitch Pattern Plate Clip
- Bobbin (3x)
Dimensions
- Machine Dimensions: 425(W) x 300(H) x 170(D) mm
- Machine Weight: 5.9 kg
