Border OptionsHugging border, circle, square, or rectangle — with a 3mm satin stitch.
Backing OptionsAvailable with iron-on, sew-on, or velcro backing.
Fast ShippingShipped quickly from the USA.
Free Online Tools
Powerful embroidery utilities that save time and prevent costly mistakes.
Stitch AssistantRECOMMENDED
Get the exact stabilizer, machine settings, needle, and thread color sequence for every embroidery design you purchase — based on that design's stitch density, dimensions, and color count.
Can't find your file type? No problem- on our download page we have a feature to convert to 19 different formats for free with our free conversion tool!
PROJECT INSTRUCTIONS
{{ vidIndex + 1 }} / {{ videoLinks.length }}
FREE SHIPPING
Free Shipping is to the continental USA unless otherwise stated.
United States Shipping - UPS Ground or USPS Parcel Post
All shipping to United States addresses is sent via UPS Ground, UPS Second-Day Air,or USPS (United States Parcel Post). When you choose one particular service in our shopping cart, you will receive a real-time shipping quotation, as well as an indication of the delivery time for each item in your order. Tracking numbers are available with UPS Ground and UPS Second-Day Air. In some cases, we may substitute FedEx Ground for UPS Ground, in which case you will receive a FedEx tracking number instead.
How to use:
Hoop fabric, crinoline and/or stabilizer. Embroider design and un-hoop. Lay a piece of E-Zee Heat Seal on the reverse side of the embroidery with the release paper facing up. Use a heat press or iron to bond the E-Zee Heat Seal to the fabric (see chart above). Allow to cool and then pull off the release paper. Cut the patch to shape with scissors or a die cutter. Finish the edges with a serging machine or a zig-zag stitch on a home sewing machine.
Please note:
The recommended heat setting for the garment or substrate must be taken into account when setting the temperature of the iron or heat press for heat seals. Use a press cloth or silicone sheet as needed. ALWAYS test at the lowest temperature and time first.

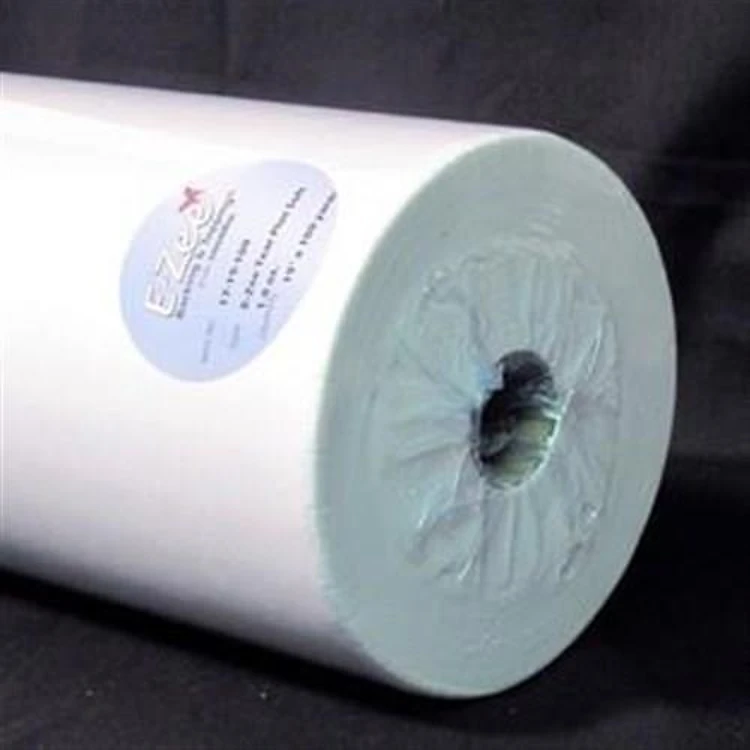

E-Zee Heat Seal 4220 5 mil. is a transparent nylon double-side adhesive film.
It has heat-activated adhesive on both sides. A special release paper is on one side to allow for pressing. It is a highly bondable heat seal used primarily on the back side of badges that will be permanently sealed to garments or hats. It adheres well to acetate, silk, cotton, rayon and wool. It provides exceptional dry cleaning resistance and excellent wash-ability. Made of nylon (polyamide).
For use with:
Badges
Patches
Emblems
Heat press settings:
Machine setting: 320°F to 392°F (160°C to 200°C)
Dwell time: 20 to 30 seconds
Pressure: 2.5 to 4.2 Bar (40-60 psi)
Shipping Estimates:
— {{ est.price.amount | currency }}
Shipping Estimates:
— {{ est.price.amount | currency }}
*Shipping rates are estimates only. Final shipping will be calculated during checkout.
By licensing this design you agree to these terms:
This design is copyright protected by Madeira and may not be distributed, altered or unaltered in any format outside of EmbroideryDesigns.com or directly from Madeira. Items with this design(s) sewn onto the product may be sold commercially with limitation. You must have written consent to mass market items using this design. Madeira will not be held liable for any monetary losses or consequential damages as a result of using this design. Due to global piracy policies, no refunds are available for electronic data files of designs unless proven to be defective and cannot be corrected.
By licensing this design you agree to these terms:
This design is copyright protected by Madeira and may not be distributed, altered or unaltered in any format outside of EmbroideryDesigns.com or directly from Madeira. Items with this design(s) sewn onto the product may be sold commercially with limitation. You must have written consent to mass market items using this design. Madeira will not be held liable for any monetary losses or consequential damages as a result of using this design. Due to global piracy policies, no refunds are available for electronic data files of designs unless proven to be defective and cannot be corrected.
