Applique Awareness Ribbon Key Fobs
PROJECT INSTRUCTIONS

Applique Awareness Ribbon Key Fobs Embroidery Project

By   Pat Williams   on   December 18, 2018
  • SKILL LEVELSome Experience
  • TIME REQUIRED00:20
  • FINISHED SIZE2 x 3.87 inches
Description

Create meaningful Applique Awareness Ribbon Key Fobs to support your favorite cause. Each fob is crafted from vinyl and can be completed in less than 20 minutes. Perfect for personalizing bags or keys with a cause close to your heart. Step-by-step instructions are included.

Step of

Materials

Project Preview Video

Materials
  • 5” x 7” embroidery hoop
  • Marine Vinyl – canvas backed
  • Optional - Glitter Mirror Vinyl
  • Optional –Size 20 Long KamSnaps® or size 20 Short depending upon the vinyl thickness
  • Optional- KamSnaps® pliers
  • Key rings and lobster clasps
  • 2.5 ounce Cut away stabilizer
  • Sharp dressmaker scissors
  • Small sharp in the hoop scissors
  • Spray adhesive

    • Designs used in this project

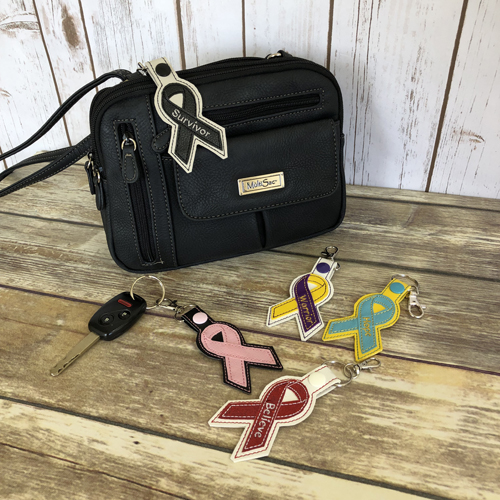

    Final Product: What You Will Create
    Preface:
    There are many websites online that list the colors of ribbons to make for all of the causes they represent. Type “Awareness Ribbons colors and causes” in your internet browser to find the information you need.

    Materials may be purchased from any supplier, but I thought it would help you if you knew where I purchased mine. I ordered some of the canvas-backed marine vinyl from both Amazon and Mikri World LLC on line. There was quite a difference in the thickness of the vinyl. The Mikri World LLC vinyl is approximately 1mm thick. The vinyl purchased on Amazon was probably only 1/2mm thick. Either can be used, but with the thinner vinyl, I suggest you use two layers of cut away stabilizer. The Glitter Mirror Vinyl has a thin layer of vinyl over the glitter so that it has a smooth and the glitter does not come off as it is stitched. I purchased the Glitter Mirror Vinyl from Mikri World LLC too but it is available in other places.

    The Kam Snaps are optional. I preferred the “Long” size 20 Kam Snaps® on the thicker vinyl and the short ones on the thinner vinyl. I ordered the Kam Snaps pliers from Amazon but had to go to Kam Snaps own website to get the longer pronged snaps. If you don’t have a Kam Snaps® pliers you can insert the key ring circle into the extension on the key fob, fold it over and stitch it down with your sewing machine.

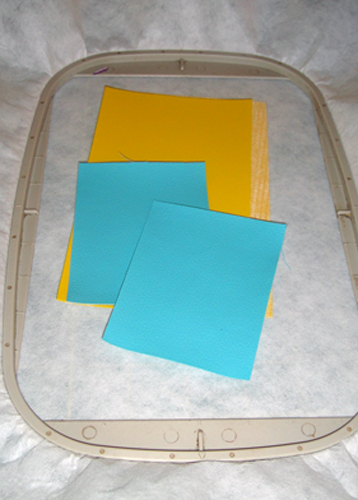

    Step 1:
    (Click Image to Enlarge)
    Cut 2 marine vinyl rectangles 6” x 3 1/2” and two pieces of vinyl 3” x 3.5” for the ribbon appliques. Personally, I preferred the thicker vinyl for the 6” x 3 ½” rectangles and the thinner vinyl for the ribbon appliques, but either can be used. If using the thinner vinyl for the body of the key fob you may want to use two layers of stabilizer in your hoop.

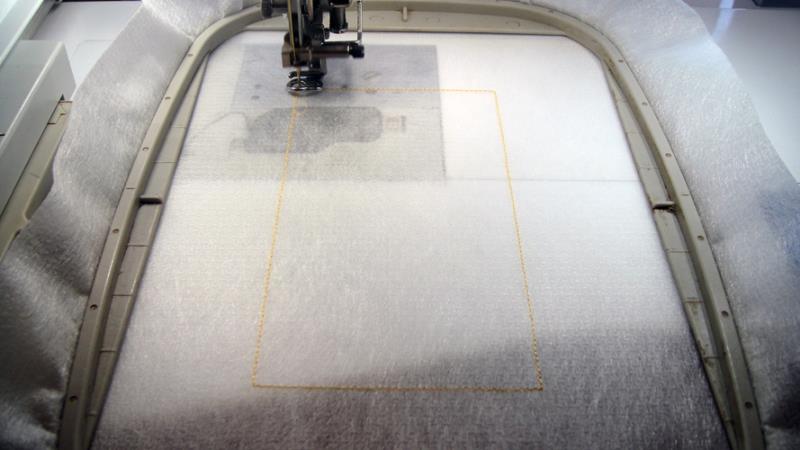

    Step 2:
    Run the 1st color stop (CS 1) as a placement line for the vinyl.

    (Click Image to Enlarge)

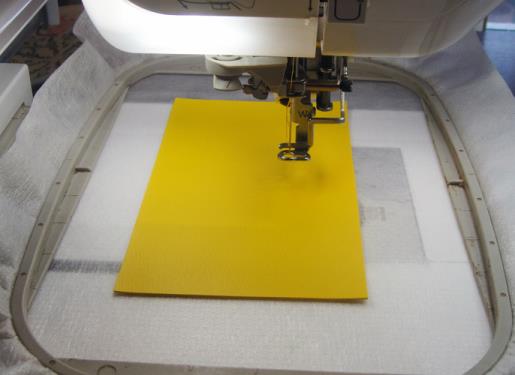

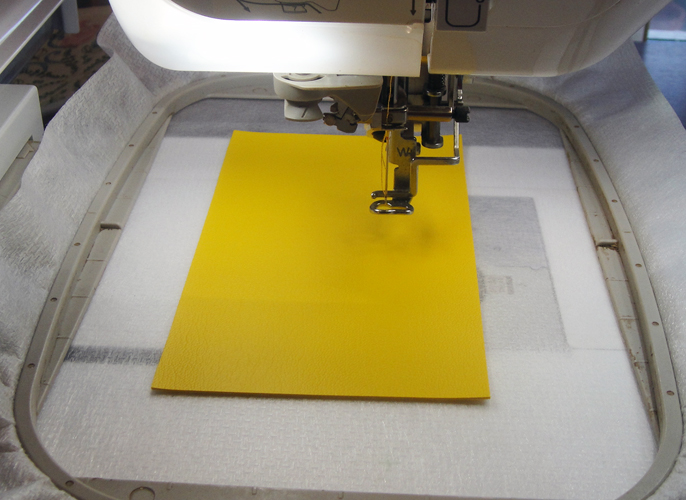

    Step 3:
    Spray adhesive on the back of the vinyl and position over the placement line.

    (Click Image to Enlarge)

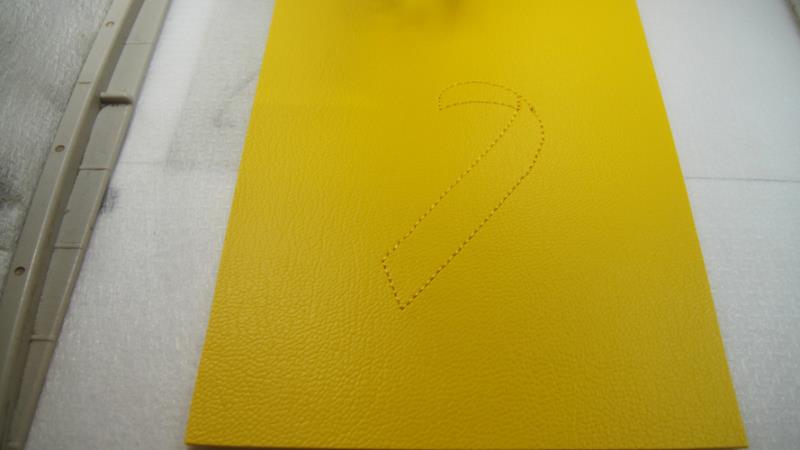

    Step 4:
    Run CS 2 as a placement line for the right leg of the ribbon.

    (Click Image to Enlarge)

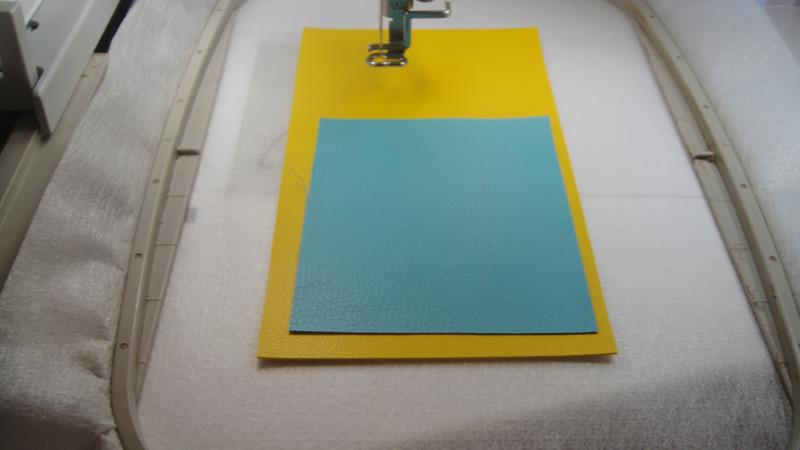

    Step 5:
    Spray adhesive on your ribbon applique and position over the placement line.

    (Click Image to Enlarge)

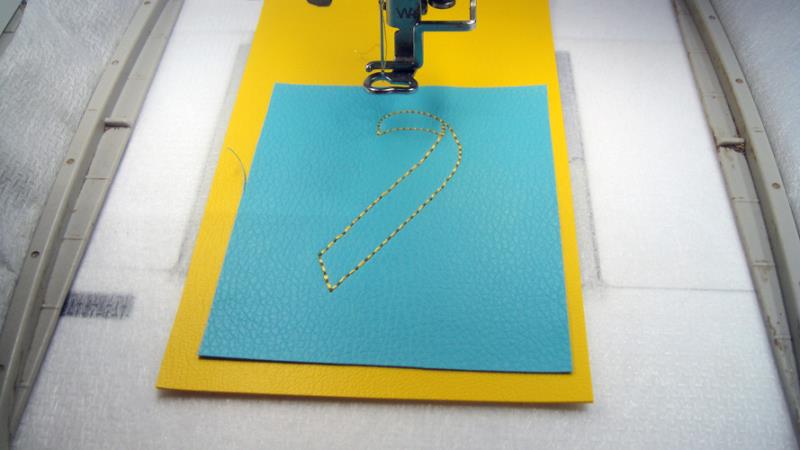

    Step 6:
    Run CS 3 in either a matching or contrasting thread to tack down the applique.

    (Click Image to Enlarge)

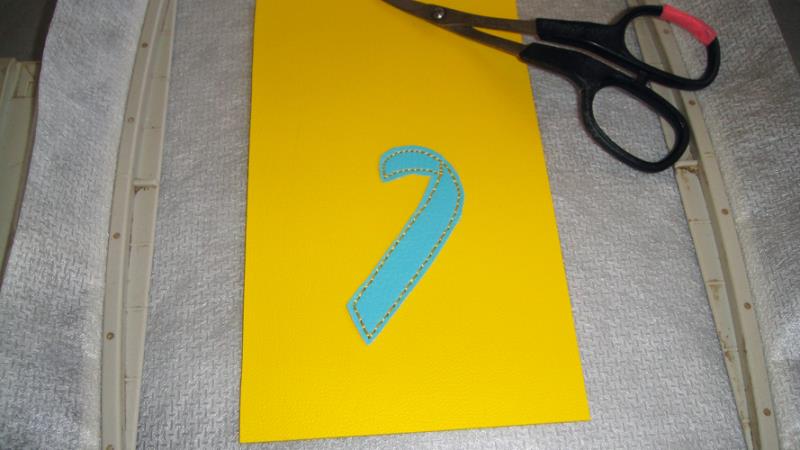

    Step 7:
    Remove the hoop from the machine, do not unhoop, and trim the applique.

    (Click Image to Enlarge)

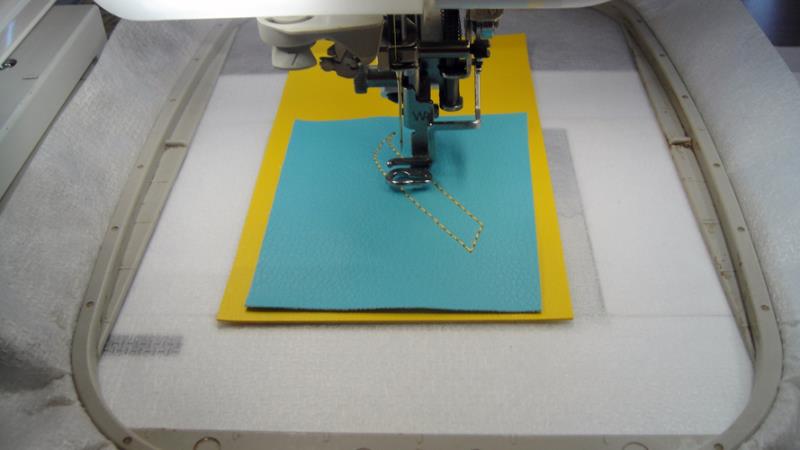

    Step 8:
    Return the hoop to the machine. Run CS 4 as a placement line for the second leg of the ribbon. Spray the second applique piece with adhesive and position over the tack down lines. Run CS 5 to tack down the applique.

    (Click Image to Enlarge)

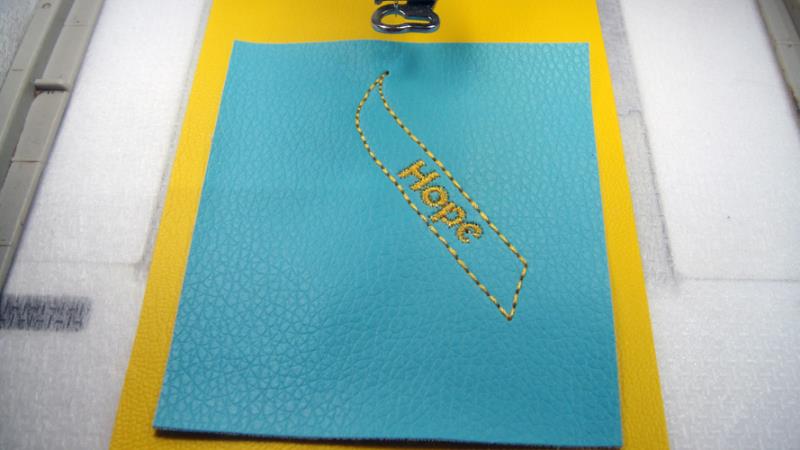

    Step 9:
    For the four designs that contain lettering run CS 6 to stitch the lettering. Then trim the applique as in Step 7.

    (Click Image to Enlarge)

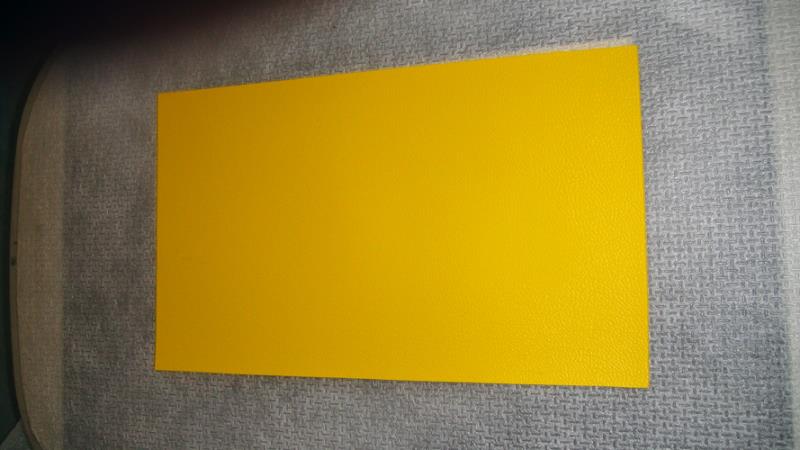

    Step 10:
    Turn the hoop wrong side up, spray the remaining 6” x 3 ½” piece of vinyl and align over the vinyl that is on the front.

    (Click Image to Enlarge)

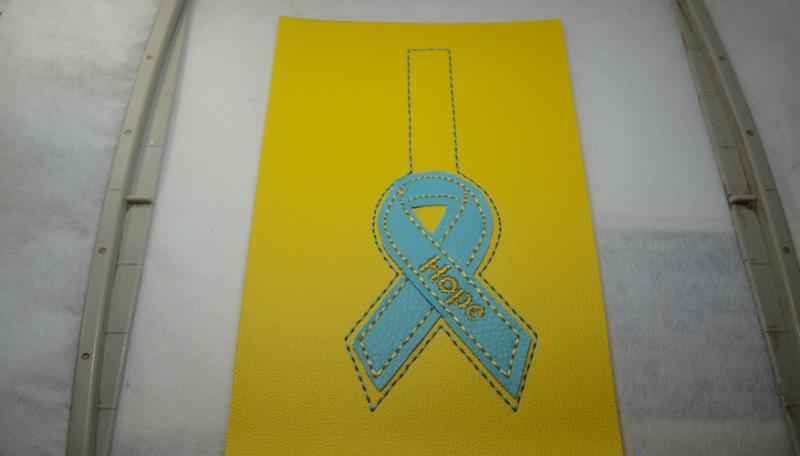

    Step 11:
    Return the hoop to the machine and stitch the last CS to seam the two layers of vinyl together.

    (Click Image to Enlarge)

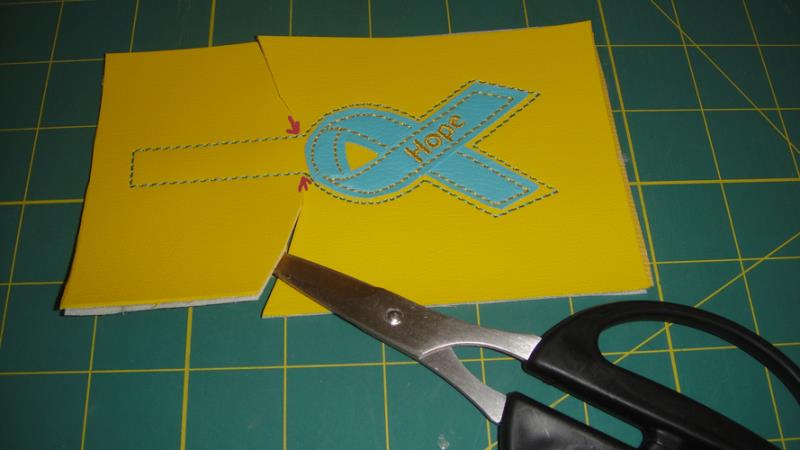

    Step 12:
    Trim the excess stabilizer around the vinyl. You will find it easier to cut out the key fob if you notch into the corners at the top of the curves.

    (Click Image to Enlarge)

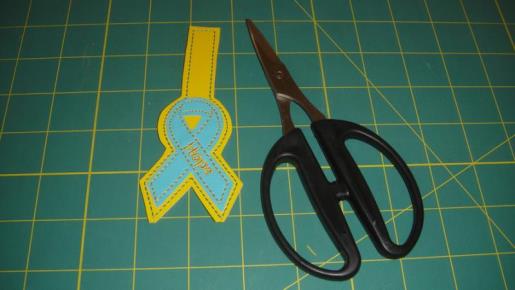

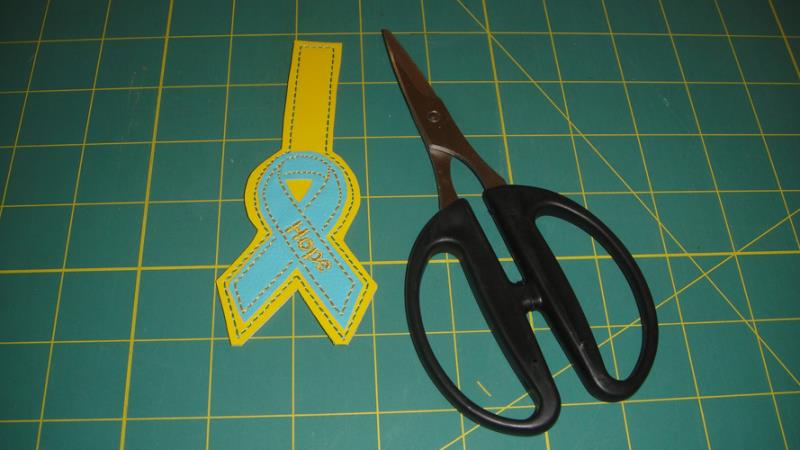

    Step 13:
    Trim around the key fob with about a 16th “outside the seam stitching.

    (Click Image to Enlarge)

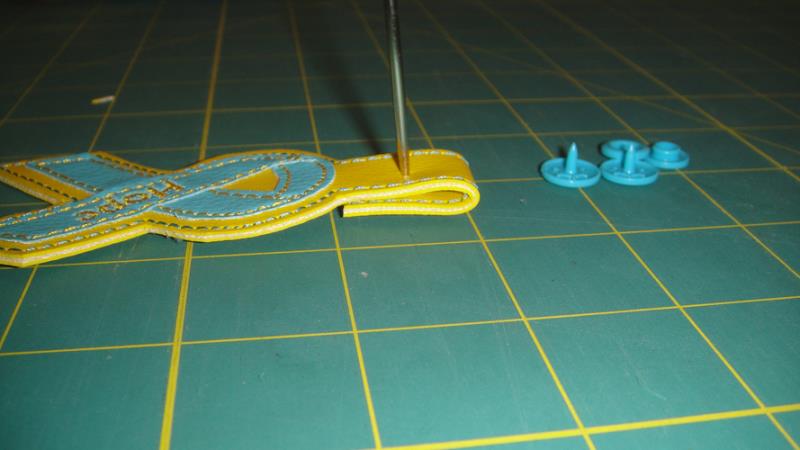

    Step 14:
    Fold the top tab off the key fob in half. With an awl poke a hole through both layers of the tab in about the center of the tab.

    (Click Image to Enlarge)

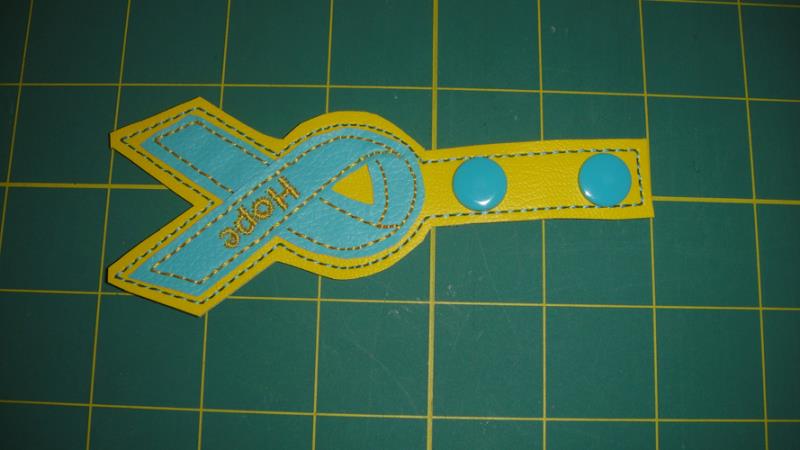

    Step 15:
    Following the manufacturer’s instructions insert the KamSnaps® into the tab. The outside of both snaps will be on the front of the tab.

    (Click Image to Enlarge)

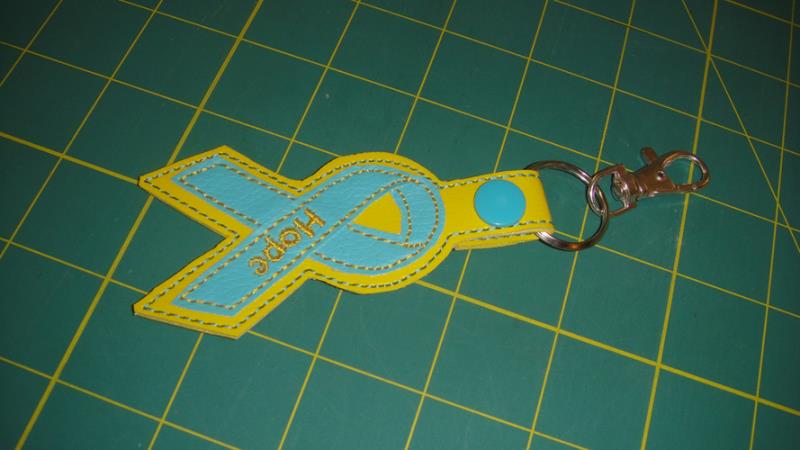

    Step 16:
    Insert a key ring and lobster clasp and snap the tab in half.

    (Click Image to Enlarge)


    Step 17:
    Congratulations your key fob is complete!
    For the love of embroidery…
    Pat Williams
    Meet the Author: Pat Williams
    Pat Williams
    Award winning Digitizer, Embroidery Educator, Author and a Consultant to the Industry, Pat Williams has 30 years of experience in the embroidery industry. Pat has won multiple awards for her digitizing expertise including the 2007 Impressions Awards Grand Championship, Best of Show as well as the 1st and 2nd Place Awards. Pat’s love of digitizing has afforded her the opportunity to write numerous articles for Impressions magazine in the United States and Images Magazine in Europe. In 2001 Pat was named “Embroidery Educator of the Year.” For many years Pat taught digitizing seminars at the ISS Shows in Long Beach, CA and for Compucon software. She now resides in Tucson, AZ.
