Music Lover's Soft CD Holder
PROJECT INSTRUCTIONS

Music Lover's Soft CD Holder Embroidery Project

By   Ramona Baird   on   February 02, 2015
  • SKILL LEVELIntermediate
  • TIME REQUIRED05:00
Description

Craft a soft-sided CD holder using fabric with a musical theme. Perfect for music enthusiasts, this holder features a prominent musical note design and can store your favorite CDs safely. Step-by-step instructions are included.

Step of

Materials

Project Preview Video

Materials
  • Music fabric: 1-right border 1.5” x 11.5”, 1- left front cover 9” x 11.5”, 2-pockets 7.5” x 14.5”
  • Pink dot fabric: 2-borders 5” x 3”, 1 lining 14.5” x 11.5”
  • White fabric for embroidery 6” x 5” (cut this piece larger to enable hooping, then after embroidery it will be cut down to this size)
  • Fusible tricot knit interfacing for white fabric, lining and 2 pockets
  • Tearaway stabilizer
  • Embroidery thread to compliment fabric
  • Headliner fabric 1- 14.5” x 11.5” (lightweight foam used in vehicle upholstery work available in the upholstery section of the fabric store)

    • Designs used in this project
    Preface:
    Headliner fabric is used as the basis for this soft-sided CD holder. White fabric is embroidered, then music and pink dot fabric is cut to frame the embroidery. The same fabrics are used to create pockets and line the case.

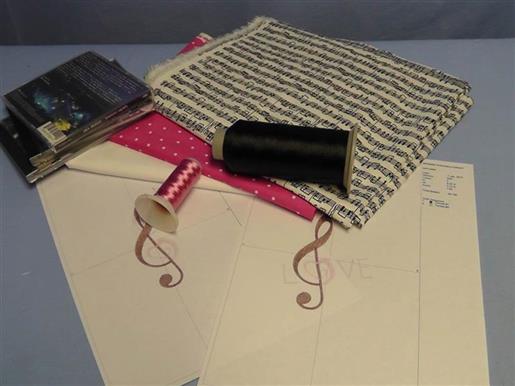

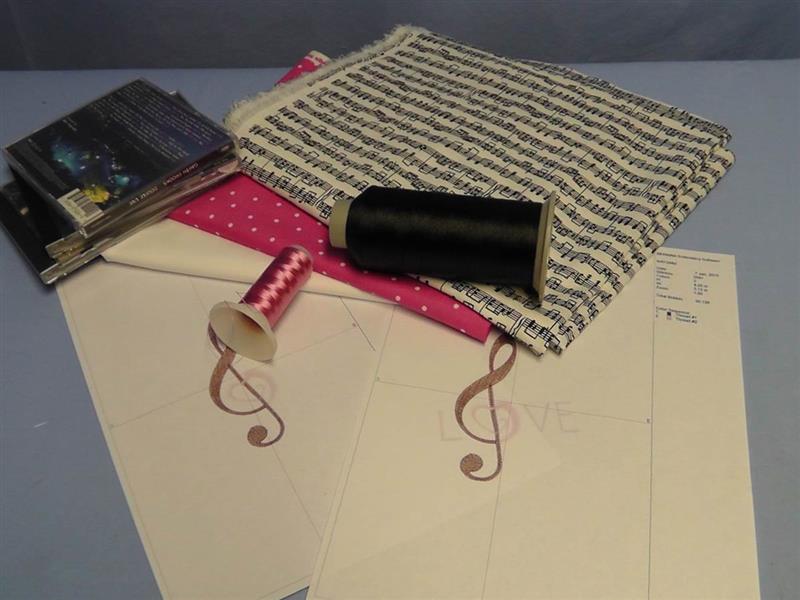

    Step 1:
    Gather the supplies and print the paper template of the design. Read through all the instructions before beginning.

    (Click Image to Enlarge)

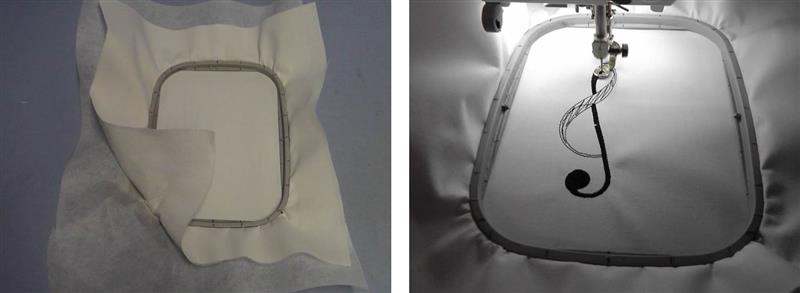

    Step 2:
    Fuse the tricot knit interfacing to the back of the white fabric. Hoop the fabric with one piece of tearaway stabilizer. Load design “I Love Music” and stitch following the color sequence.

    (Click Image to Enlarge)

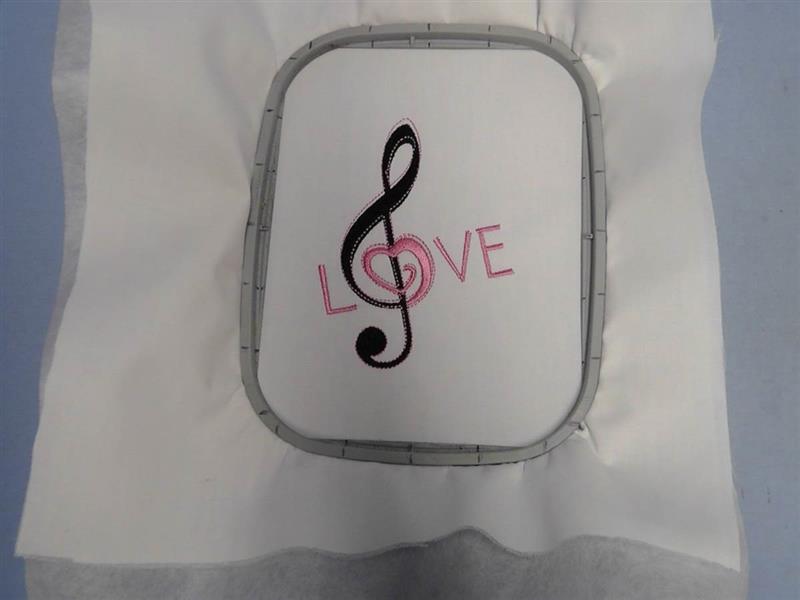

    Step 3:
    After the design has stitched, remove the fabric from the hoop, remove the excess stabilizer and press the fabric well.

    (Click Image to Enlarge)

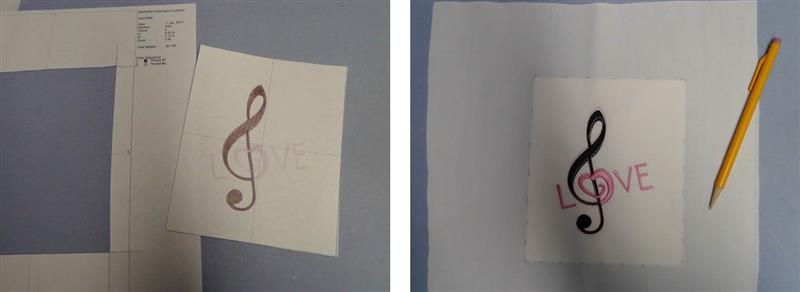

    Step 4:
    Using the crosshair on the paper template, measure and cut the template so it is 5“ wide and 6“ high. Place the paper template under the embroidery, aligning the images. Draw the outline of the rectangle on the fabric and cut it out.

    (Click Image to Enlarge)

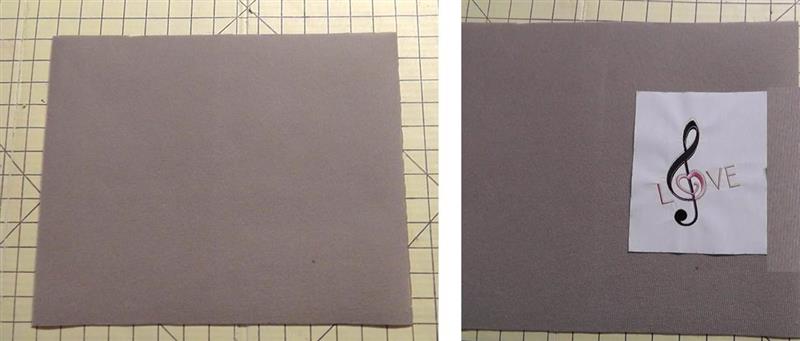

    Step 5:
    Place the headliner fabric face up on a flat surface. Measure from the right edge 1” and place the right edge of the embroidered fabric.

    (Click Image to Enlarge)

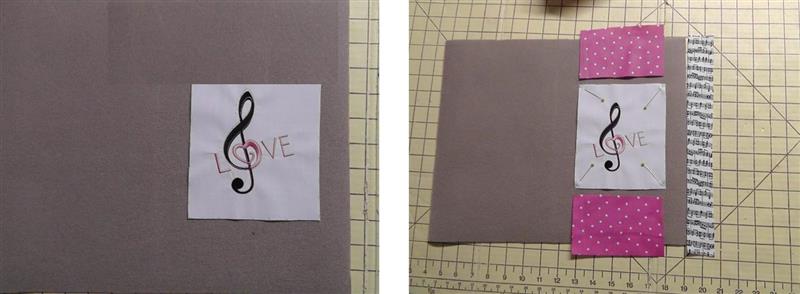

    Step 6:
    Measure down 2.75” from the top of the headliner and align the embroidered fabric; this will center the embroidery vertically along the right side. Pin the embroidered piece in place. The small fabric pieces will now be pinned and sewn to border the embroidered piece.

    (Click Image to Enlarge)

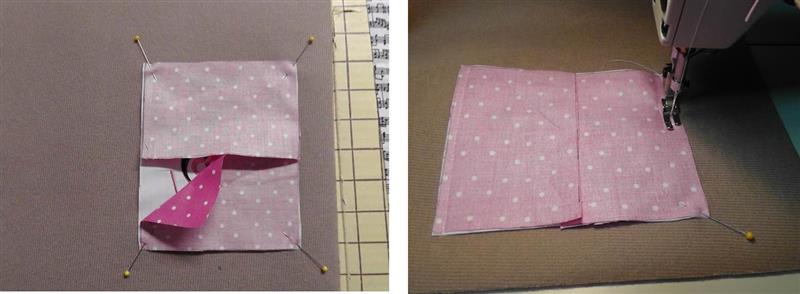

    Step 7:
    With right sides together, place the pink dot border pieces over the embroidered piece as shown. Stitch along the upper and lower edge using a ¼” seam allowance through all layers.

    (Click Image to Enlarge)


    Step 8:
    Flip the pieces up and press. Place the right music fabric border, right sides together matching the right edge of the pink/embroidered strip. Stitch through all layers using a ¼” seam allowance. Flip the fabric to the right side and press.

    (Click Image to Enlarge)

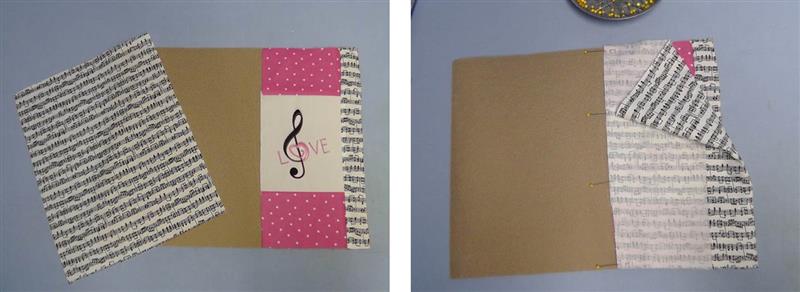

    Step 9:
    Place the left front music fabric piece, right sides together over the left side of the embroidered/pink pieces and pin in place.

    (Click Image to Enlarge)

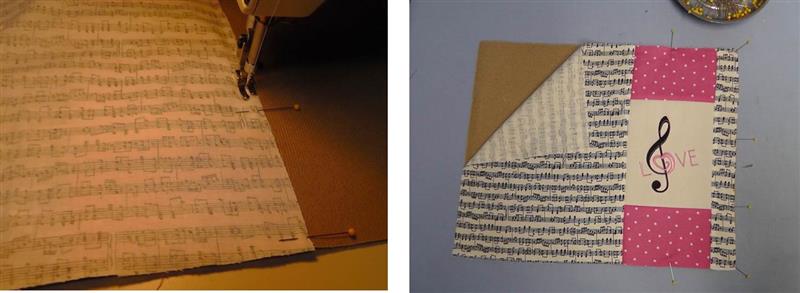

    Step 10:
    Sew this in place using a ¼” seam allowance. Flip the fabric to the right side and press the seam. Pin the fabrics to the headliner around all four outside edges.

    (Click Image to Enlarge)

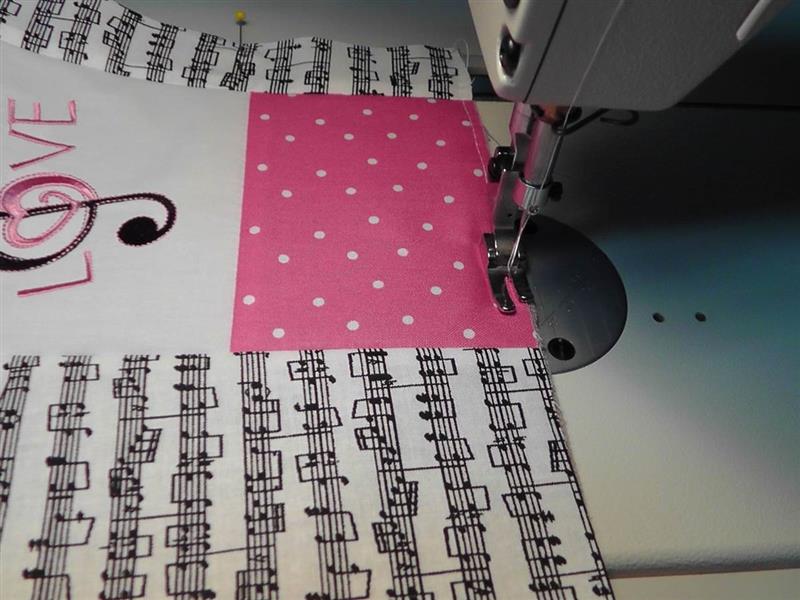

    Step 11:
    Baste the fabrics together along all four edges.

    (Click Image to Enlarge)

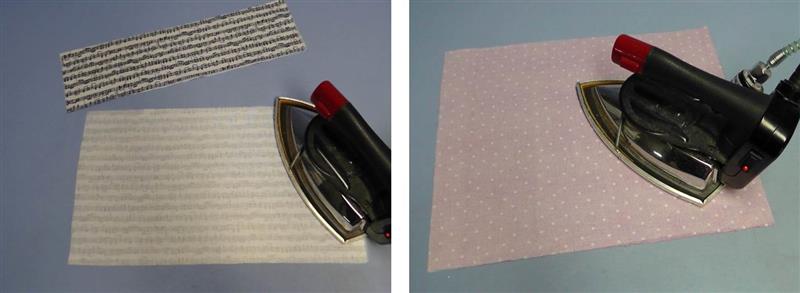

    Step 12:
    Now it’s time to prepare and sew the inside fabrics. Press fusible tricot knit interfacing to the back of the two pocket pieces and also to the back of the lining piece. Fold the pocket pieces in half lengthwise, wrong sides together, and press.

    (Click Image to Enlarge)


    Step 13:
    Measure down 5” from the top of the lining piece and place the cut edge one pocket along this line. Sew the pocket to the lining using a ¼” seam allowance.

    (Click Image to Enlarge)


    Step 14:
    Flip the pocket up and press. Pin the side edges of the pocket to the lining. Pin the second pocket to the bottom of the lining, meeting the three cut edges and pin in place. Baste the pocket edges to the lining as pinned.

    (Click Image to Enlarge)


    Step 15:
    Fold the lining/pockets right sides together and press to form a crease. Open up the lining and sew along the crease line stitching the pockets to the lining.

    (Click Image to Enlarge)

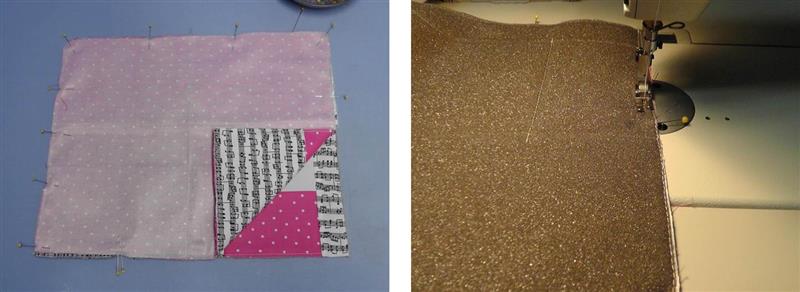

    Step 16:
    With right sides together, place the lining over the cover front. Stitch along all four edges using a ¼” seam; leave an opening at the bottom through which to turn the fabric.

    (Click Image to Enlarge)

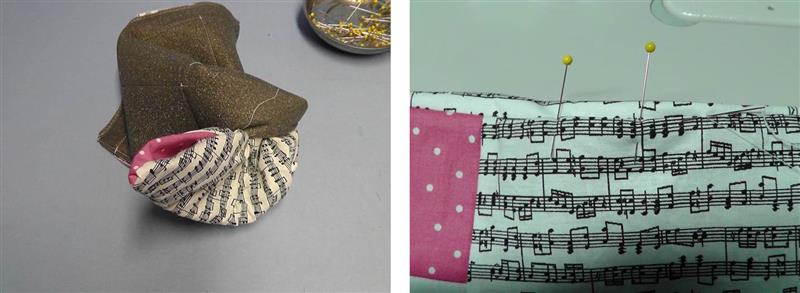

    Step 17:
    Turn the fabric right side out through the lining, forming the corners well. Turn under the seam allowances of the opening pin and hand stitch the opening closed.

    (Click Image to Enlarge)

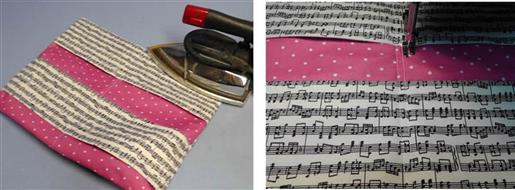

    Step 18:
    Press the fabric well. Stitch through all layers ¼” on each side of the creased line stitching.

    (Click Image to Enlarge)

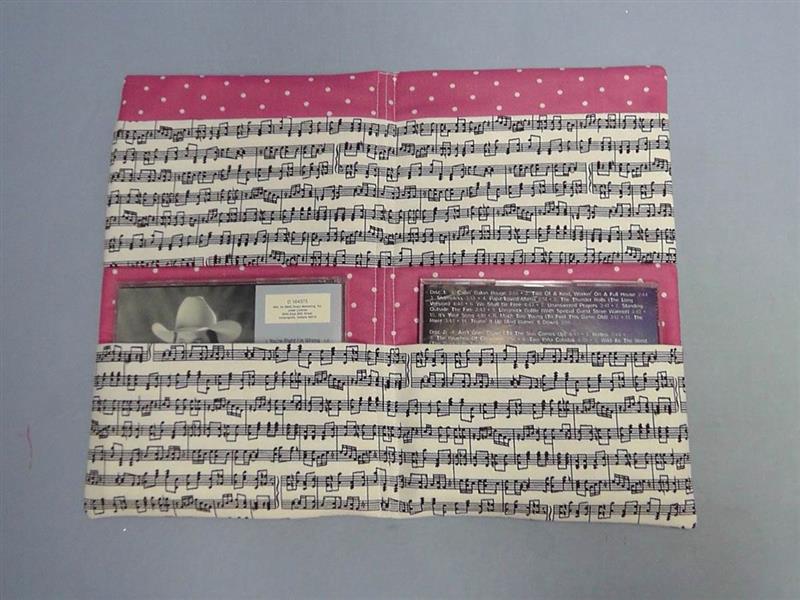

    Step 19:
    Place the music CDs in the pockets.

    (Click Image to Enlarge)

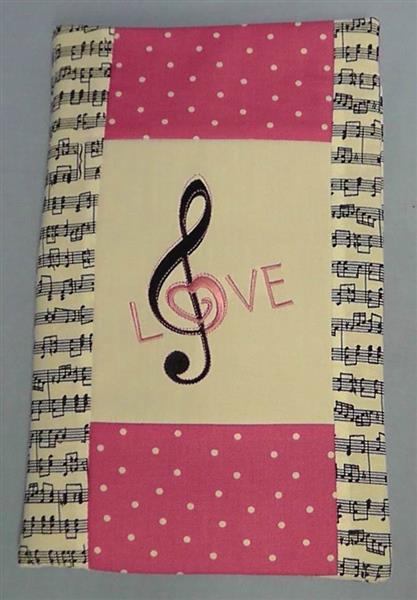

    Step 20:
    Close the cover and the cases are protected in a beautiful “I Love Music” CD holder.

    (Click Image to Enlarge)
