Make these wonderful little zippered pouches in only 35 minutes each. They are the perfect size for carrying your earbuds, flash drives, bobbins, or coins wherever you go. They are great stocking stuffers too!
There are 8 color changes in this embroidery file all of them can be stitched in the same color thread. The color stops are there so that you can perform the necessary steps to make the pouch. For each step you will need to remove the hoop and place it on a flat surface. Do not unhoop the project until you are instructed to do so.
Step 1:

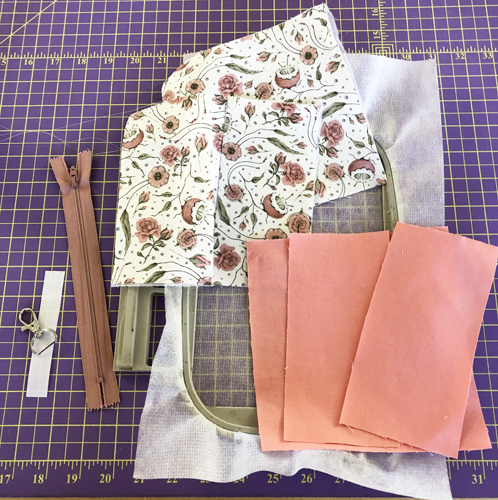

1. For each pouch cut:
a. 1 6 ½” x 6 ½” square of the outer fabric, interfacing, and lining b. 2 6 ½” X 3 ¼” rectangles of the outer fabric, interfacing, and lining c. No-show stabilizer to fit your hoop d. 4” of grosgrain ribbon or twill tape
Following the manufacturer’s instructions fuse the interfacing to the wrong side of the outer fabrics.
Step 2:

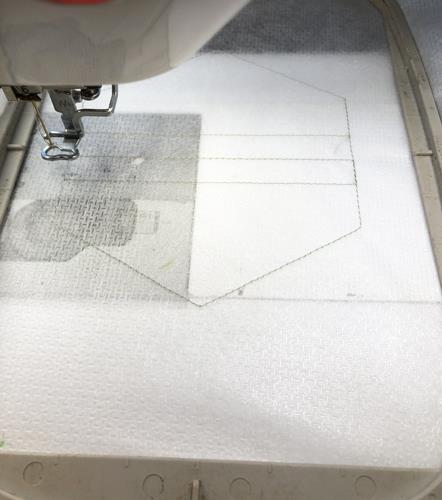

Tautly hoop the stabilizer and run color stop 1 (CS1) as a placement line for the zipper and fabrics.
Step 3:

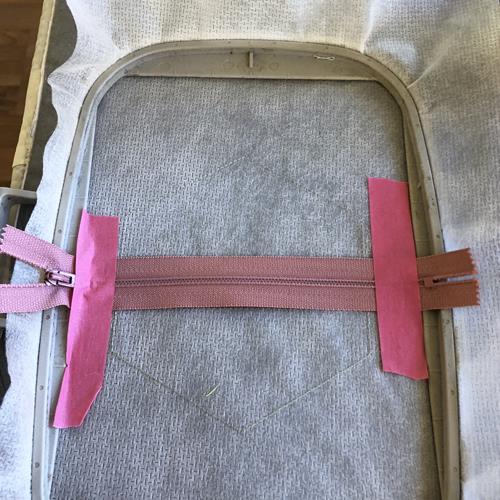

Remove the hoop from the machine and tape the zipper, right side up so that both ends of the zipper extend beyond the placement lines. The zipper teeth should be aligned along the center placement line.
Step 4:

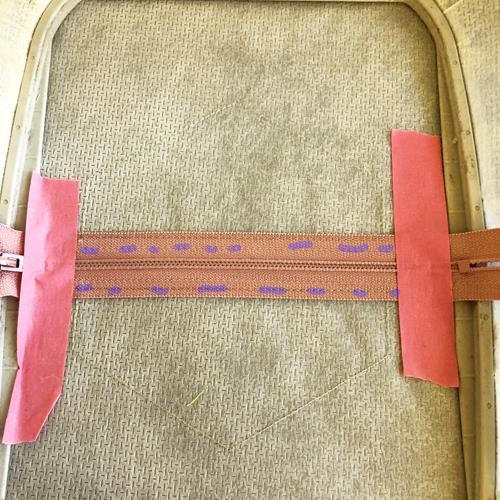

Run CS 2 to tack down the zipper.

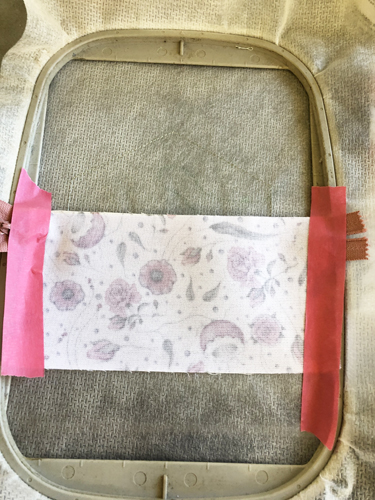

Step 5:
(Click Image to Enlarge)
Place the 6 ½” x 3 ¼” outer fabric face down aligning the top edge of the fabric with the top edge of the zipper. Tape the fabric down with embroidery tape.
Step 6:
(Click Image to Enlarge)

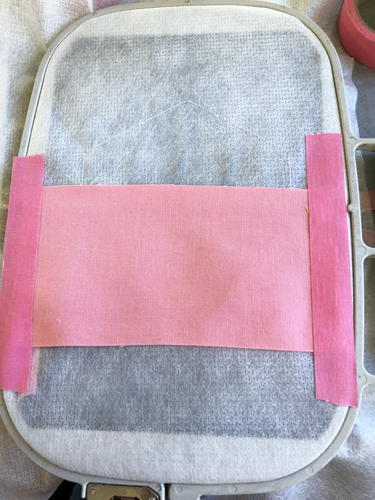

Turn the hoop over and position the top edge of a 6 ½” x 3 ¼” lining fabric along the top edge of the zipper and tape down both sides with embroidery tape. If you are using a print fabric for the lining tape it right side down.

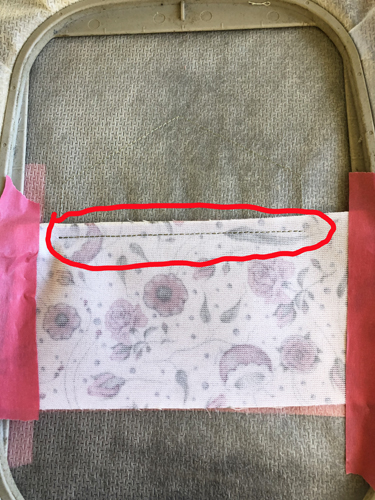

Step 7:
(Click Image to Enlarge)
Run CS 3 to seam the fabrics to the zipper.
Step 8:
(Click Image to Enlarge)

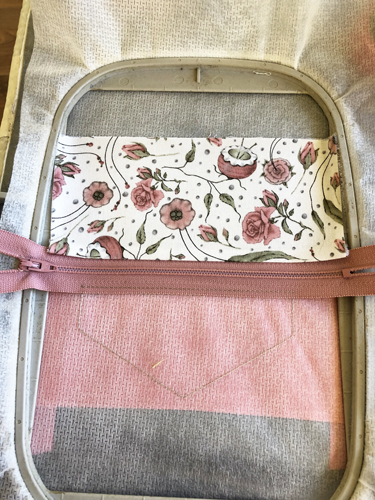

Remove the tape from the outer fabric, spray it with a little adhesive and fold it up towards the top of the hoop.

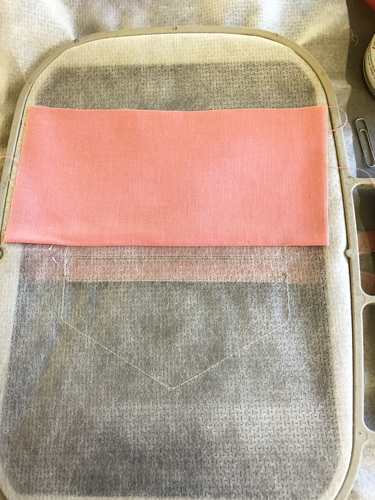

Step 9:
(Click Image to Enlarge)
Turn the hoop face down. Spray the back of the lining fabric with adhesive spray and push the fabric up towards the top of the hoop.
Step 10:
(Click Image to Enlarge)

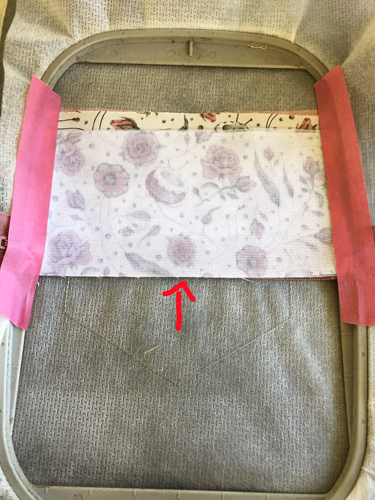

Align the top edge of the second 6 ½” x 3 ¼” outer fabric, face down, with the bottom of the zipper and tape into place with the embroidery tape.
Step 11:
(Click Image to Enlarge)

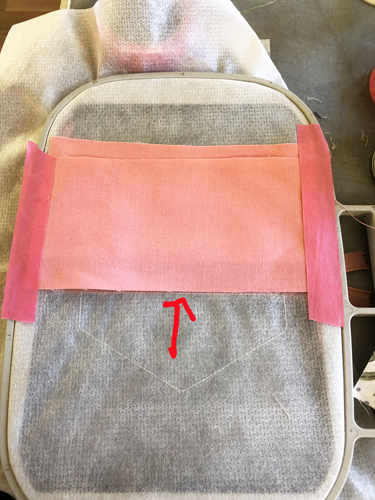

Turn the hoop over and place the 2nd 6 ½” x 3 ¼” lining fabric, aligning the top edge of the fabric with the bottom edge of the zipper, and tape into place. Run CS 4 to seam the fabrics.

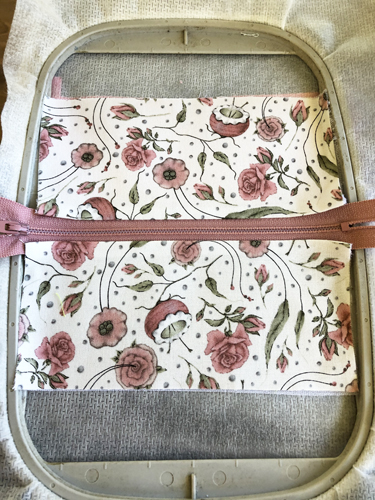

Step 12:
(Click Image to Enlarge)
Remove the tape, spray adhesive on the back of the outer fabric and push it down over the stabilizer towards the bottom of the hoop. Repeat this with the lining fabric on the back of the hoop.
Step 13:
(Click Image to Enlarge)

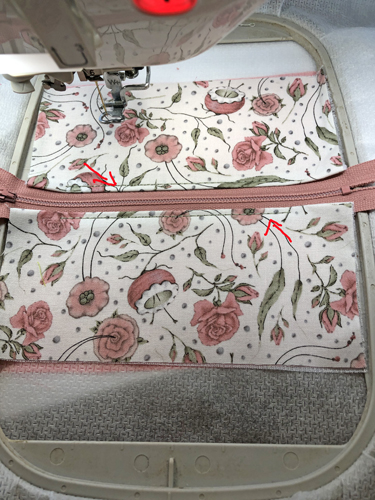

Run CS 5 to topstitch through the fabrics and to stitch a placement
Step 14:
(Click Image to Enlarge)

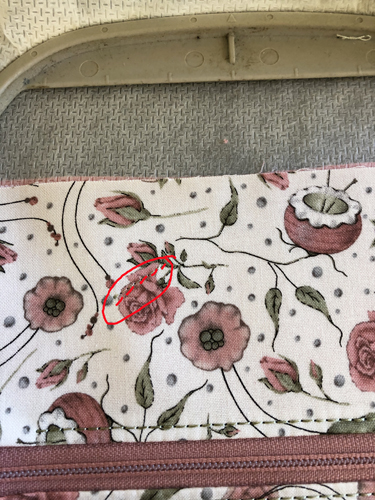

CS 6 is a placement line for the ribbon tab. It is on its own CS so that you can change your thread color if you need a different color to see these stitches on your fabric.
Step 15:
(Click Image to Enlarge)

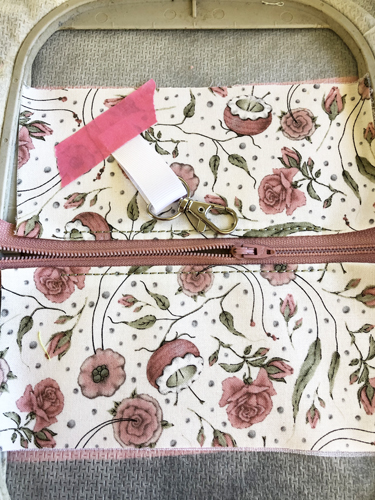

Open the zipper about three quarters of the way down between the top stitch lines. You want it far enough in from the right side edge so that the presser foot will not hit it as it comes around that curve on the final stitching, but open enough so that you will be able to open it when you want to turn the bag. Fold the ribbon in half to form a loop. Place the raw edges of the ribbon ½” above the placement line and tape down.
Step 16:

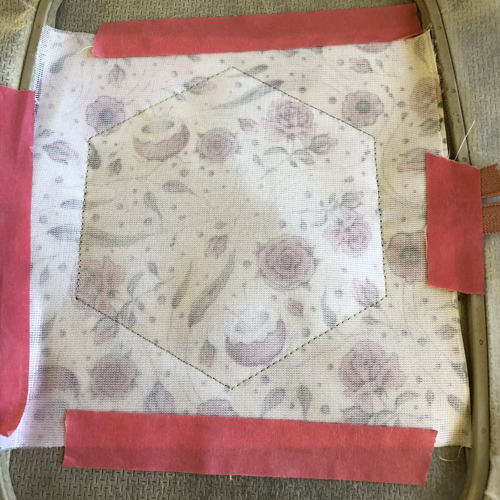

Place the 6 ½” x 6 ½” outer fabric face down over the pouch on the front of the hoop. Tape into place and run CS 7 to tack it down.
Step 17:

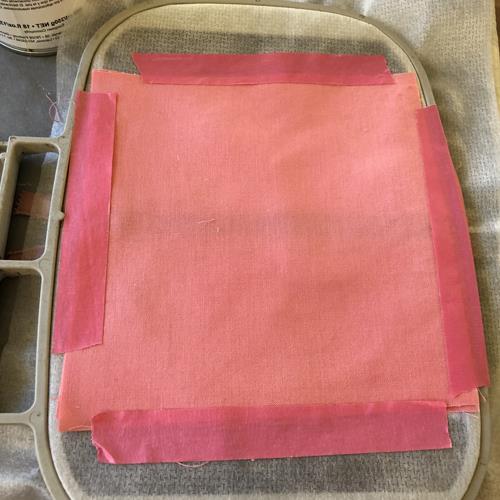

Turn the hoop over, tape the lining face down over the project on the back of the hoop. Return the hoop to the machine and run CS 8 to stitch the final seam.
Step 18:

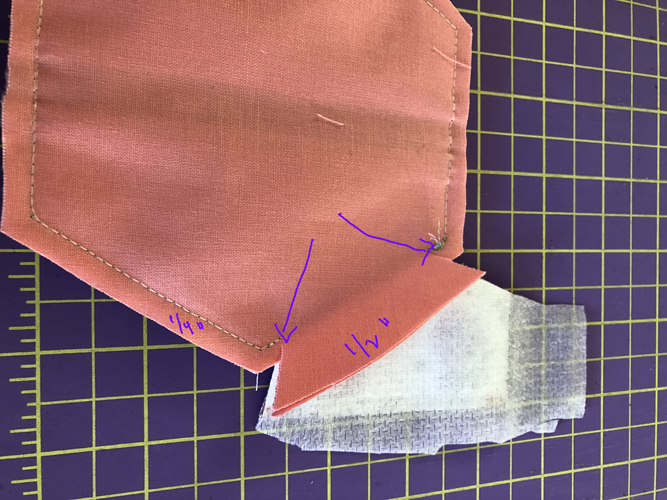

Remove the project from the hoop. Cutting from the lining side of the project will let you see the opening left in the final seam. Cut a ½” seam allowance across the opening left in the final seam and ¼” seam allowance around the rest of the circle.
(Click Image to Enlarge)

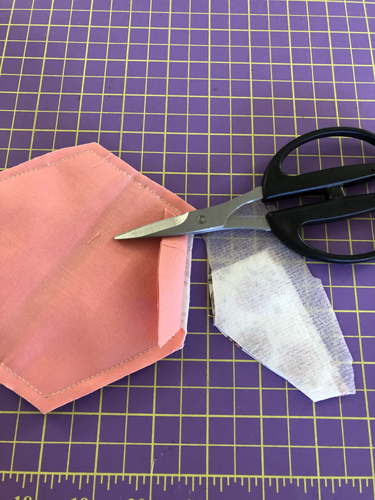

Step 19:
(Click Image to Enlarge)
You only need the lining fabrics to be ½” seam allowance across the opening, so you can lift the two lining fabrics and trim the outer fabrics and stabilizer to ¼” behind the lining fabrics.
Step 20:
(Click Image to Enlarge)

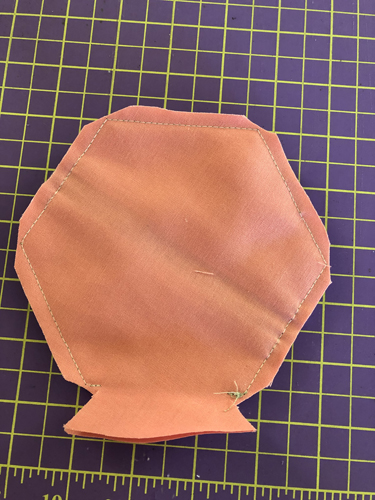

Trim straight across the corners.

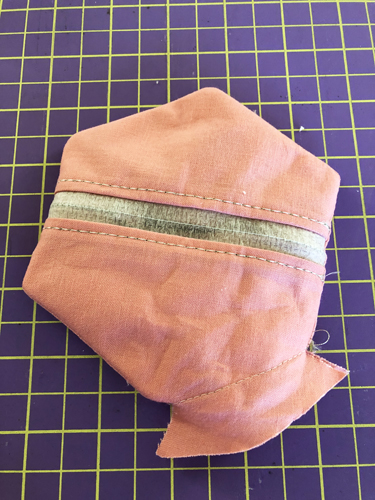

Step 21:
(Click Image to Enlarge)
Turn the bag through the opening so that the lining side is out. There is only a 2” opening to turn the bag through the opening. Take your time turning it lining side out.

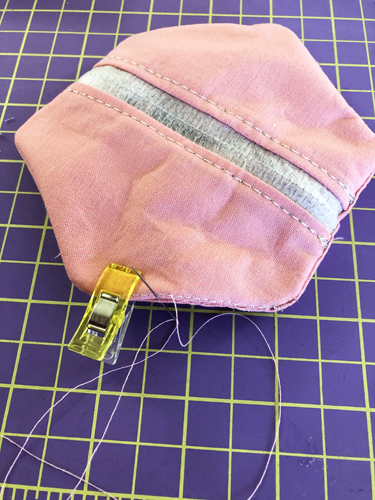

Step 22:
(Click Image to Enlarge)
Turn under the lining seam allowances across the opening, pin and whip stitch the lining closed. These do not have to be beautiful stitches as they will not be seen again.
Step 23:
(Click Image to Enlarge)

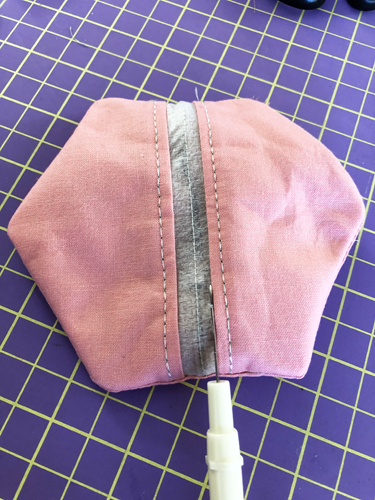

With a seam ripper or small sharp scissors lift and trim away the stabilizer behind the zipper. Be careful that you are just cutting the stabilizer and not the zipper.
Step 24:
(Click Image to Enlarge)

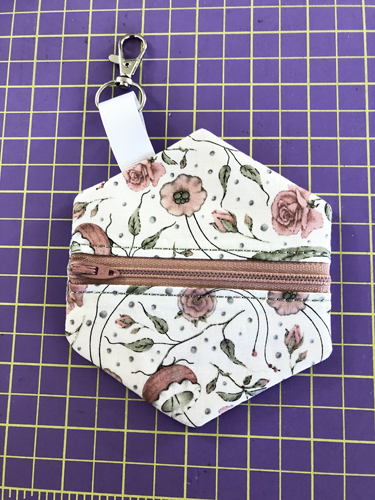

Open the zipper, turn the pouch right side out through the zipper and press.

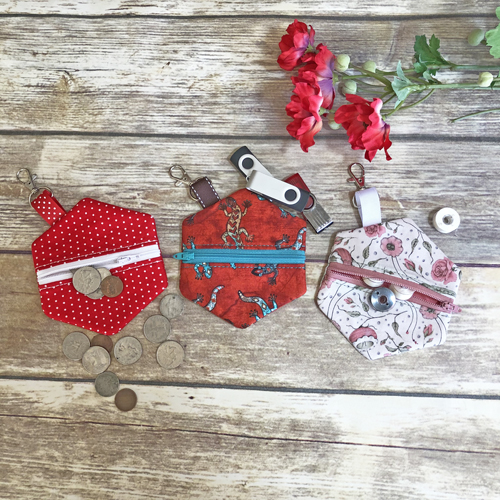

Step 25:
Congratulations your ITH Hexagon Pouch is complete. Stitch up several for all your essentials and as for appreciated gifts and stocking stuffers!
