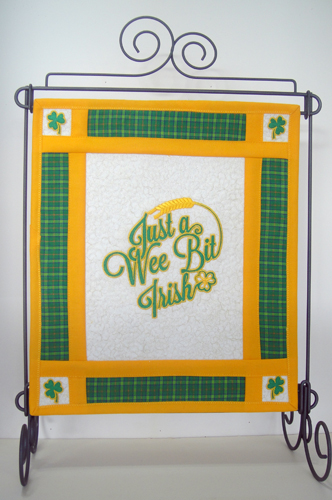

Everyone is a Wee Bit Irish on Saint Patrick’s Day. Celebrate the day with this darling mini quilt to hang in your Ackfeld Manufacturing table frame or on the wall.
Usually I suggest poly mesh type stabilizer on these mini quilt projects, but on this one we have a lot of two colored lettering. Maintaining registration is absolutely necessary when doing two colored lettering so the stronger stabilizer is suggested. The lettering is broken down into four separate sections in order to maintain registration as well. Even though many software products and machines will allow you to reorganize the color stops to reduce the number of color changes please do not do that for this design. I do not think you would be able to maintain the registration.

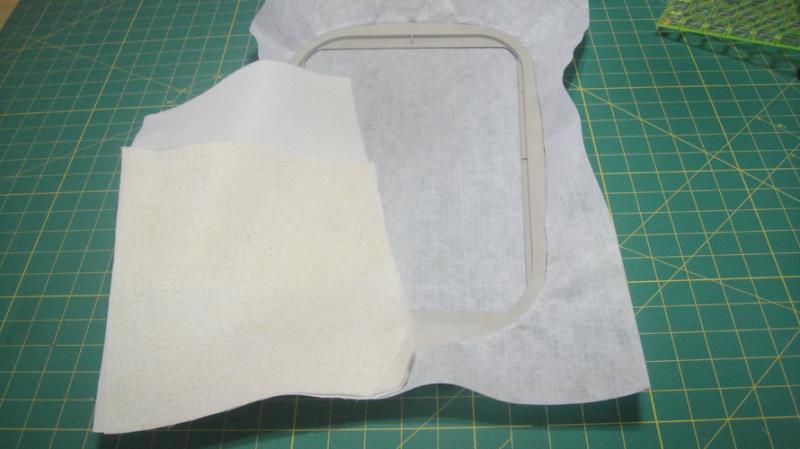

Step 1:
Cut 2 9” x 10” rectangles of the background fabric, one for the front and one for the back of the project. Cut 1 9” x 10” rectangle of Battilizer® or low loft batting. Cut and tautly hoop a piece of the cut away stabilizer to fit your hoop. This design will fit in a 12” x 7” hoop, but the samples are shown in an 8” x 12” hoop as this machine does not have a 12” x 7” hoop.
(Click Image to Enlarge)
Step 2:

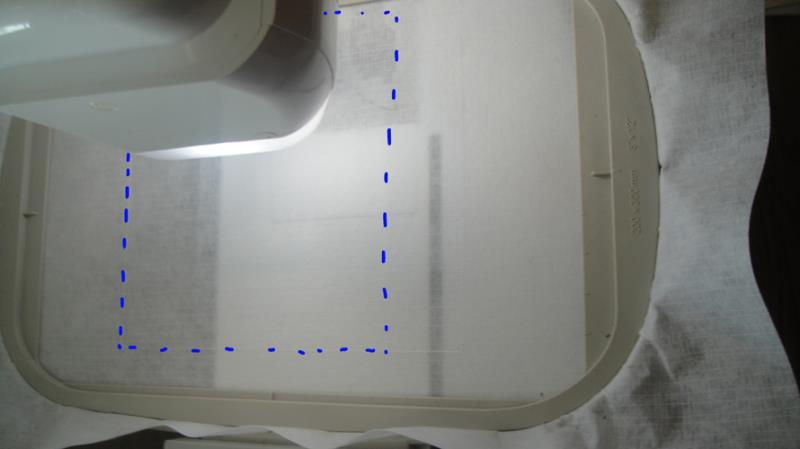

Load design SPDMQ01 into your machine, with white thread stitch the placement line.
(Click Image to Enlarge)
Step 3:

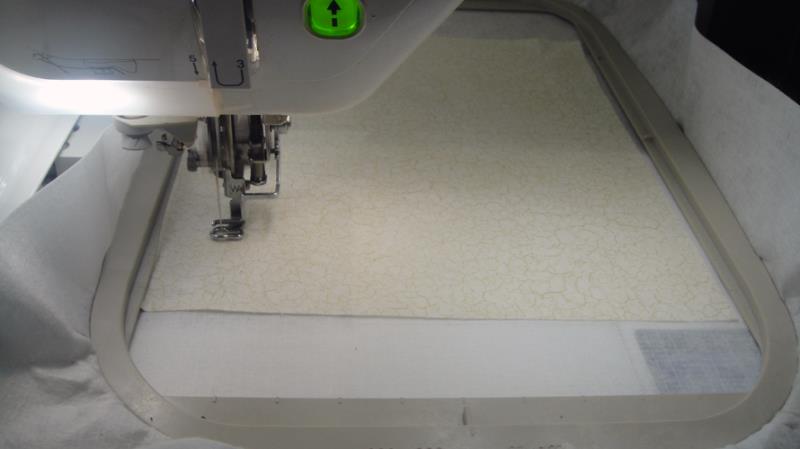

Spray adhesive on the wrong side of the block front fabric and position over the placement line so that the fabric exceeds the placement line by ½” on all sides; run color stop (CS) 2 in water soluble thread to tack down the fabric.
(Click Image to Enlarge)
Step 4:

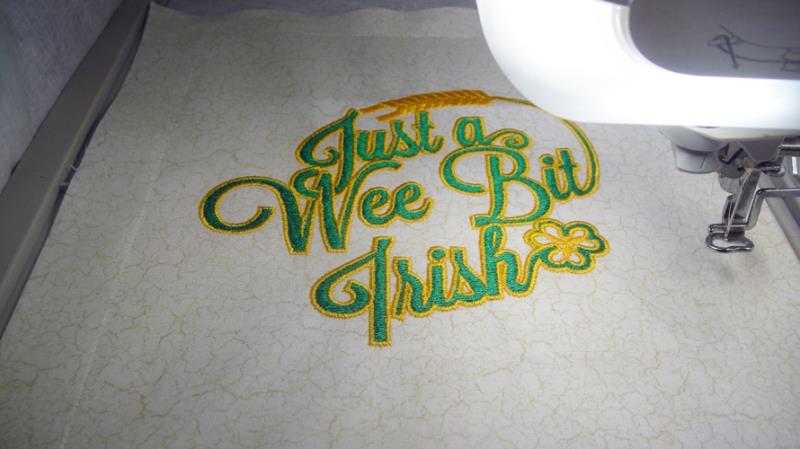

Follow the color chart through CS 10 to stitch the embroidery.
(Click Image to Enlarge)
Step 5:
(Click Image to Enlarge)

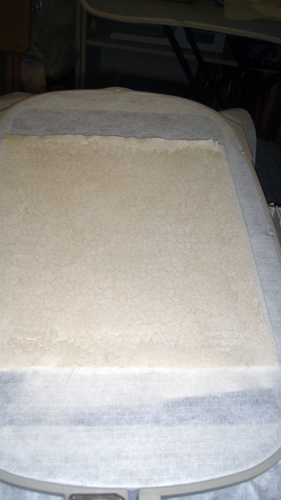

Remove the hoop from the machine; do not unhoop; turn the hoop over; spray adhesive on the Battilizer® and place over the back of the embroidery and align with the front fabric.
Step 6:
(Click Image to Enlarge)

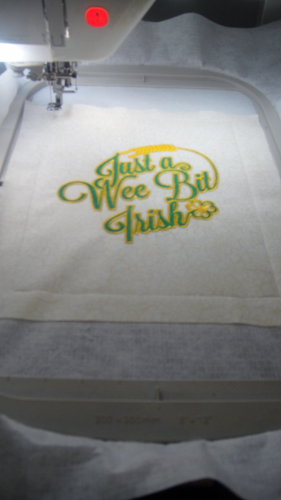

Return the hoop to the machine and run CS 11 in water soluble thread to tack down the back fabrics. Switch to white thread to run CS 12 to quilt the block.

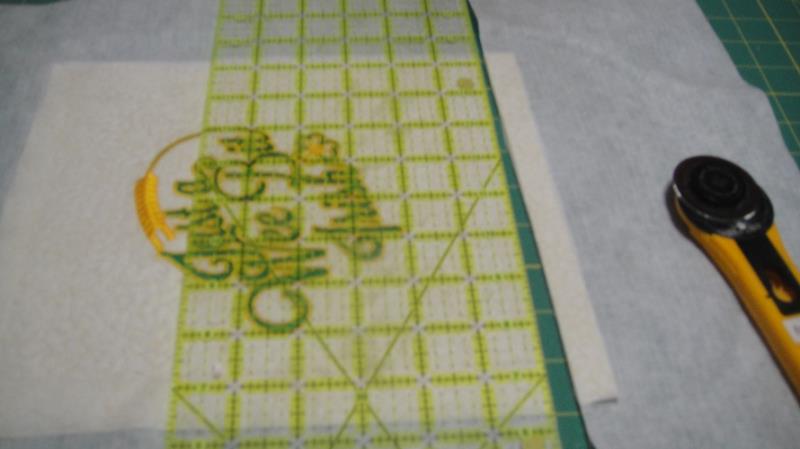

Step 7:
Lay the ¼” marks of a quilter’s ruler along the water soluble thread stitching and trim all edges to ¼”.
(Click Image to Enlarge)

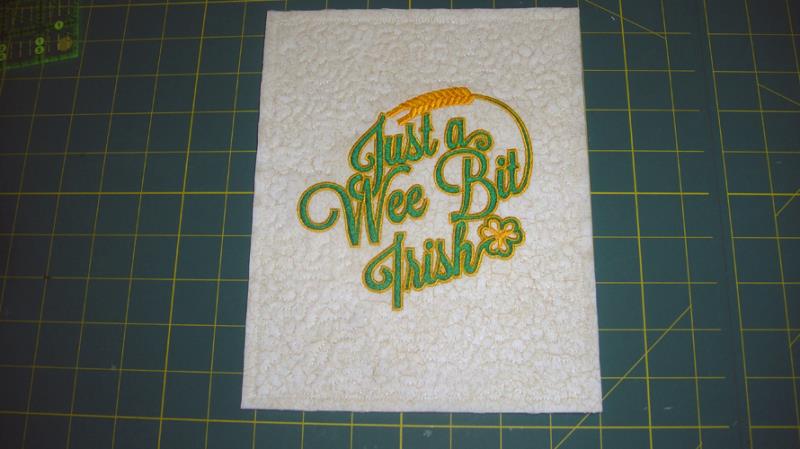

Step 8:
Your center block will now look like this.
(Click Image to Enlarge)

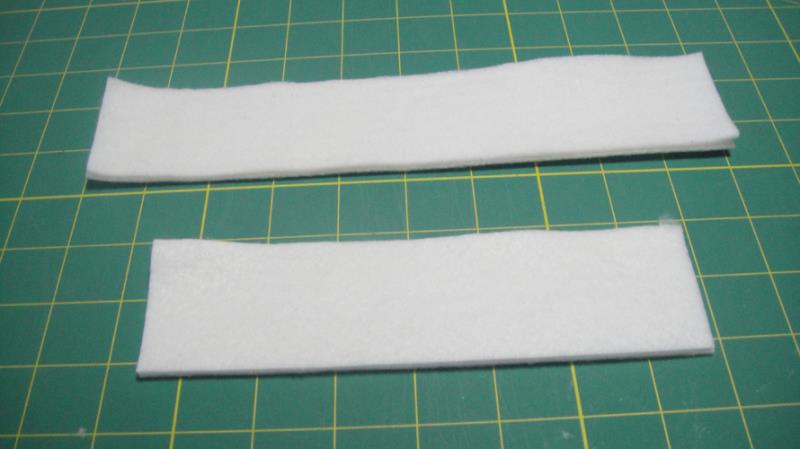

Step 9:
Cut two Battilizer strips 2” x 10” and cut 2 2” x 7 ½”; cut 4 strips of border fabric 2” x 10” and 4 2” x 7 ½”.
(Click Image to Enlarge)

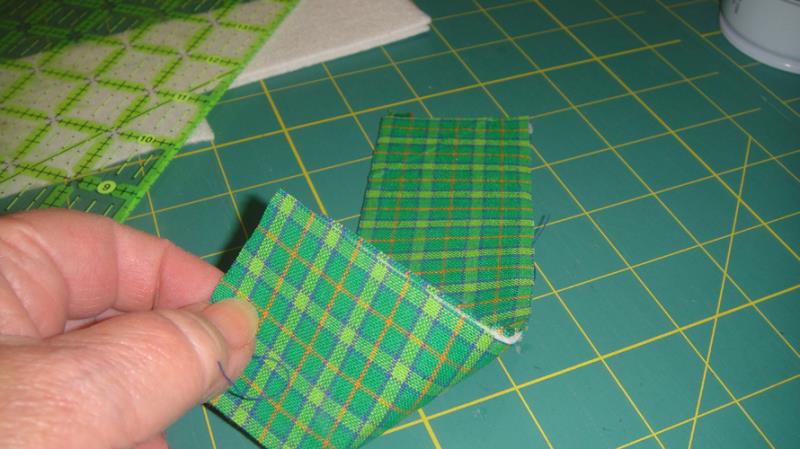

Step 10:
Make quilt sandwiches of the border quilt pieces, by placing one fabric strip right side down, spray the Battilizer® with adhesive and align with the fabric strip; spray the top of the Battilizer® with adhesive and place the corresponding fabric strip right side up on top of the Battilizer®. Do this to all four border pieces.
(Click Image to Enlarge)

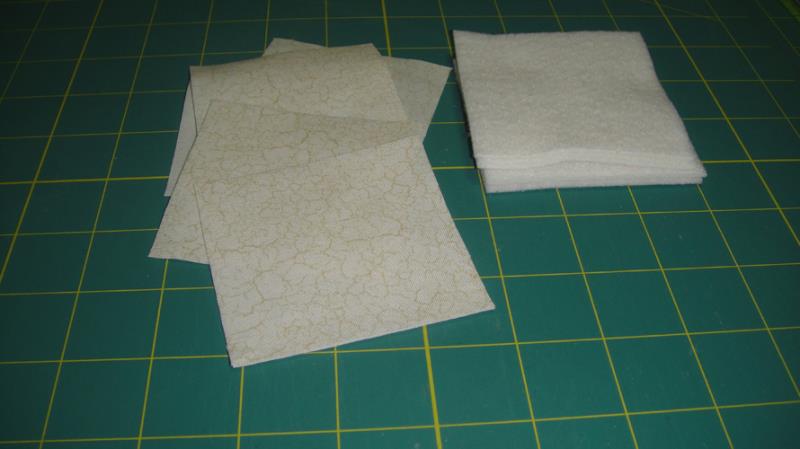

Step 11:
For the corner blocks cut 8 3” squares of fabric and 4 3” squares of Battilizer®.
(Click Image to Enlarge)
Step 12:

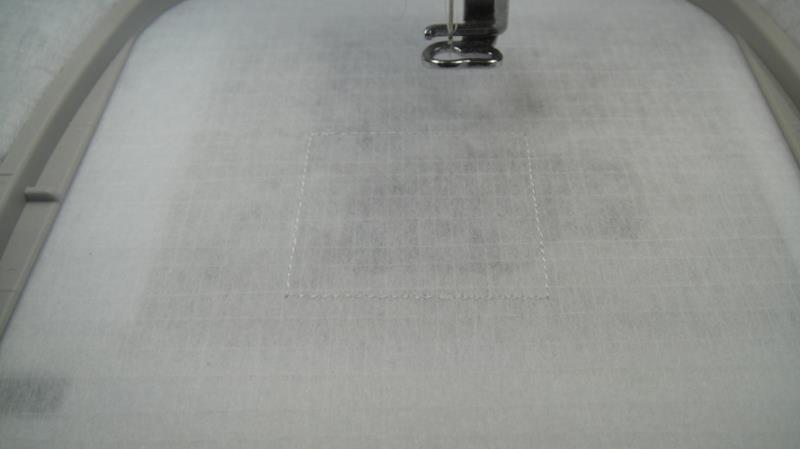

Hoop cut away stabilizer in a 4” hoop; run CS 1 as a placement line.
(Click Image to Enlarge)

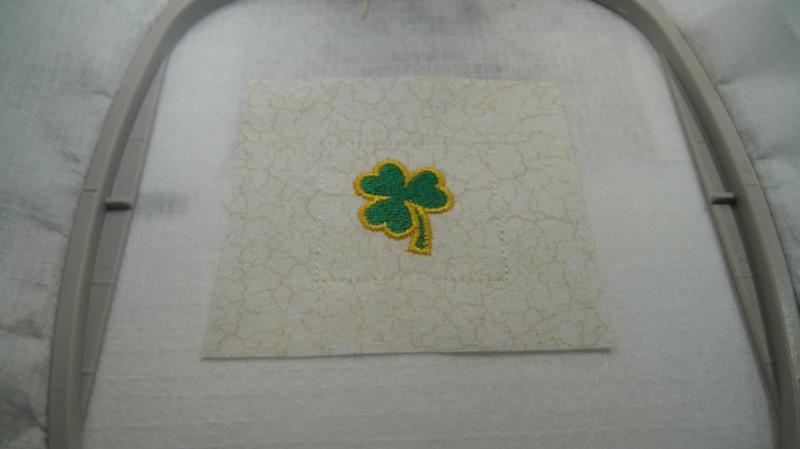

Step 13:
Spray adhesive on a fabric square and position over the placement line; run CS 2 in water soluble thread to tack down the fabric; run CS 3 in green and CS 4 in gold.
(Click Image to Enlarge)

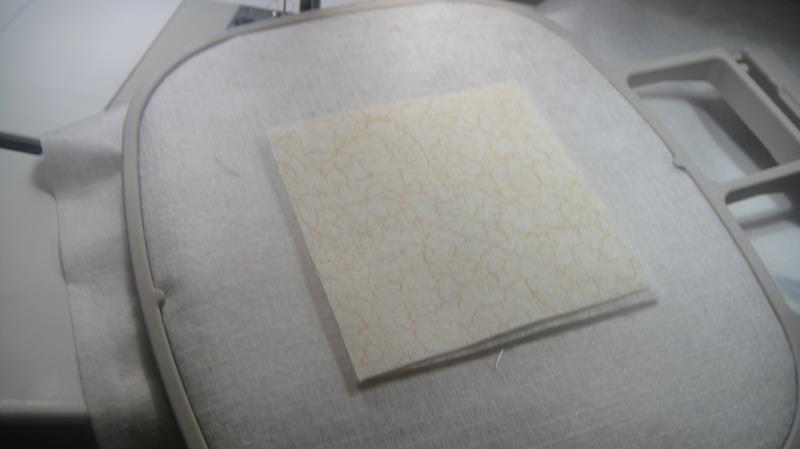

Step 14:
Remove the hoop from the machine, do not unhoop; turn the hoop over and with spray adhesive; position the Battilizer® and the back fabric on the back of the hoop.
(Click Image to Enlarge)
Step 15:

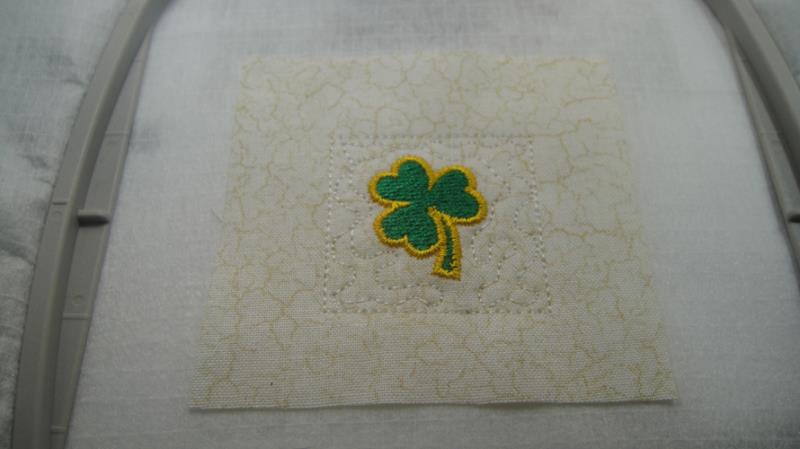

Return the hoop to the machine, run CS 5 in water soluble thread to tack down the back fabric and Battilizer®; run CS 6 in white to quilt the block. Repeat steps 12 through 15 once for a second corner block.
(Click Image to Enlarge)

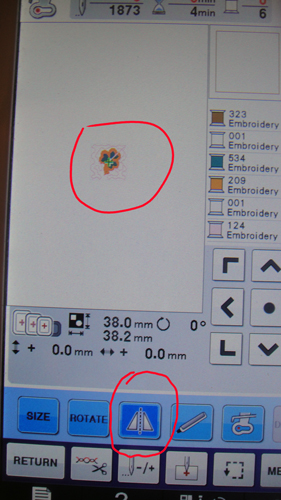

Step 16:
(Click Image to Enlarge)
Horizontally flip the corner block design in your machine with the mirror icon.
Step 17:

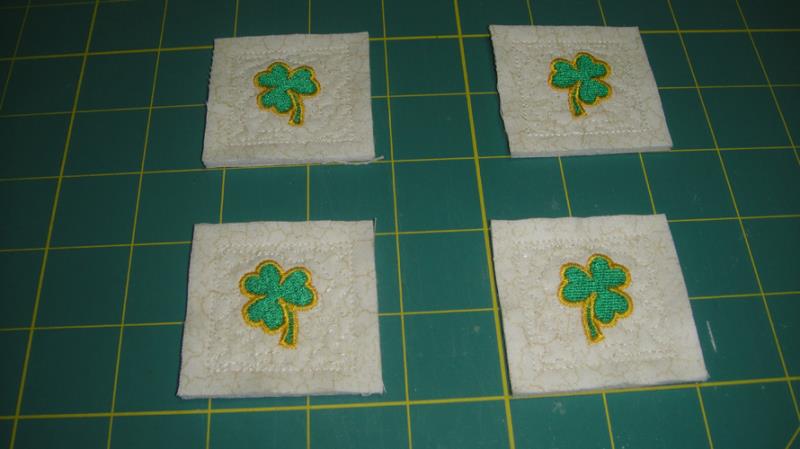

Repeat steps 12 through 15 for the two remaining corner blocks. Trim all seam allowances to ¼”.
(Click Image to Enlarge)
Step 18:

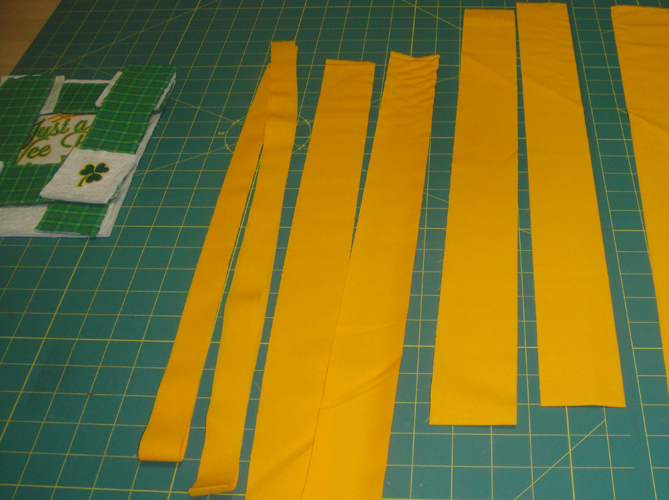

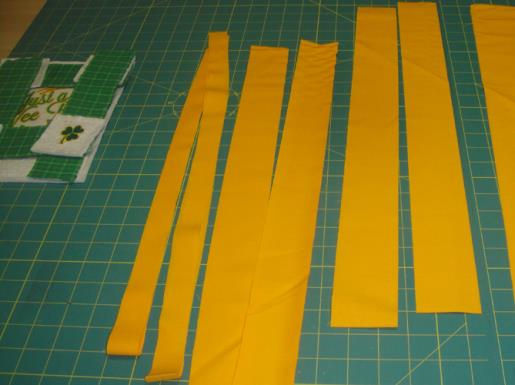

From your sashing and binding fabric cut 2 1” strips; cut 2 2” strips; cut 2 2 ½” strips all the width of the fabric.
(Click Image to Enlarge)

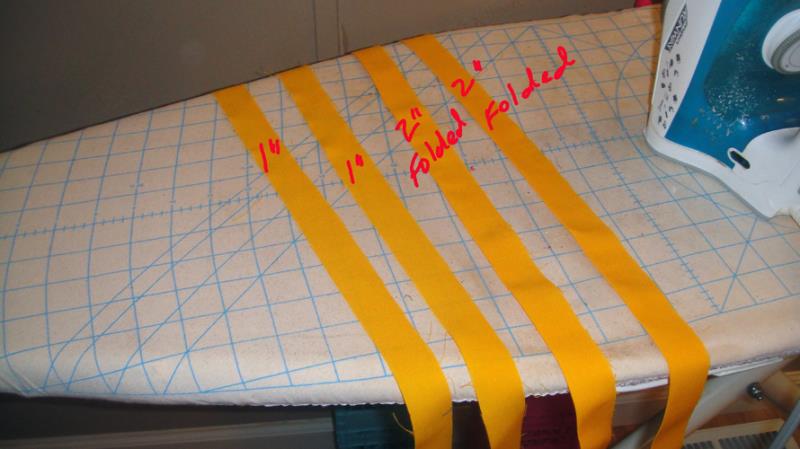

Step 19:
Press the 1” strips with Magic Sizing; fold the 2” strips in half lengthwise and press after spraying with Magic Sizing. Put a top thread on your sewing machine that matches the sashing, use a bobbin thread that matches or coordinates with your backing fabric.
(Click Image to Enlarge)
Step 20:

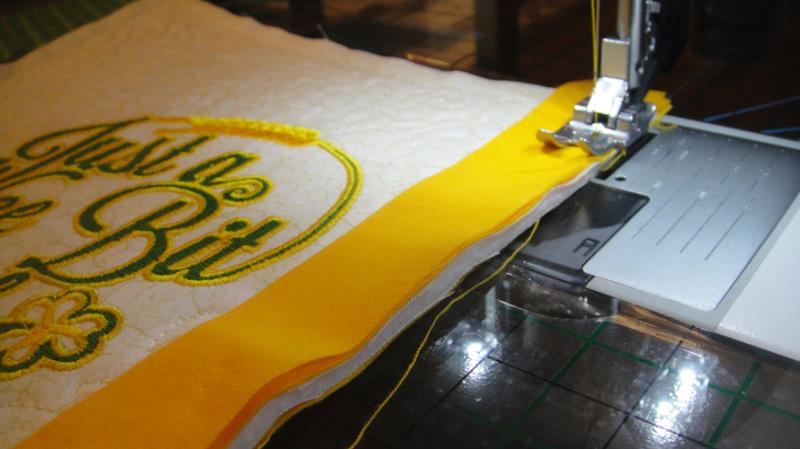

Place a 1” strip on the bottom of the right side of the center block; place a folded 2” strip on the top of the center block raw edges even; have the strips extend over the top and the bottom of the block about ½”. Use wonder clips or pins to keep all edges even, they were removed in this photo for you to see the layers better.
(Click Image to Enlarge)

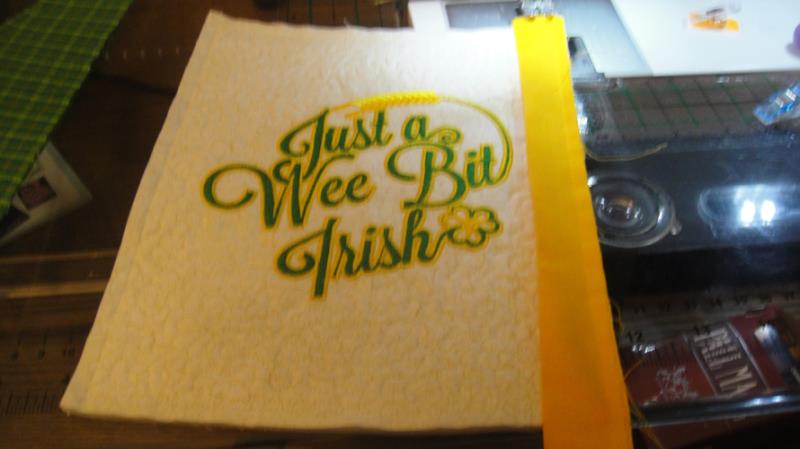

Step 21:
Stitch the three layers together with an accurate ¼” seam allowance. A stitch length of 3mm and a walking foot are recommended.
(Click Image to Enlarge)
Step 22:

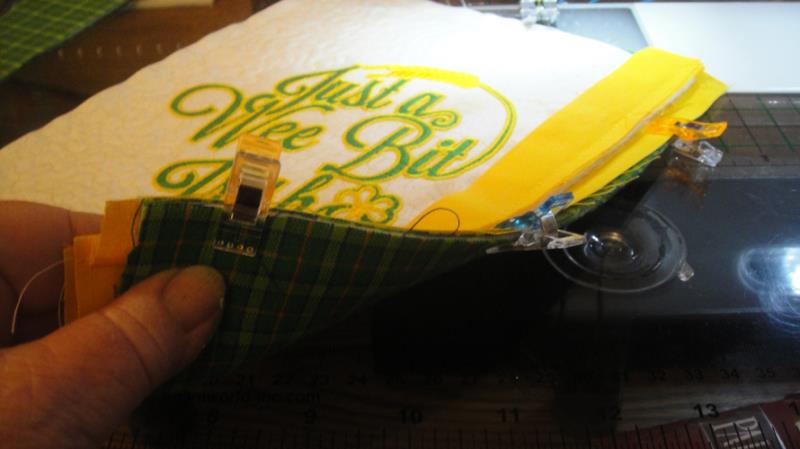

Press the bottom sashing strip out away from the center block; clip or pin a 10” border strip to the side edge of the 1” sashing strip only. Stitch the back sashing strip to the border with an accurate ¼” seam.
(Click Image to Enlarge)

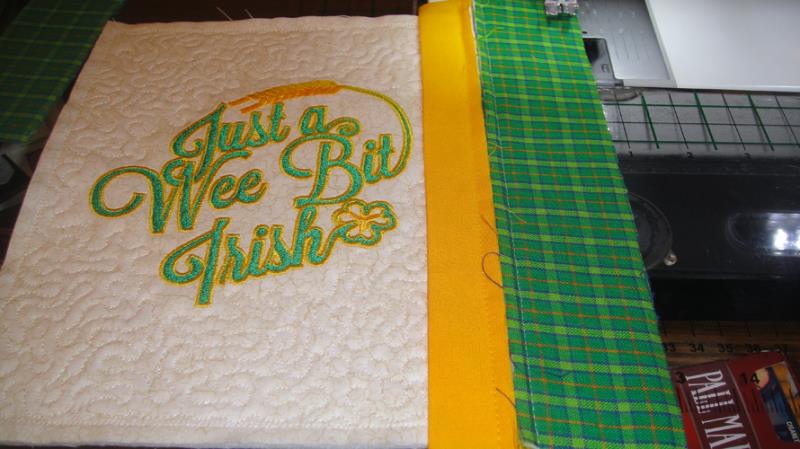

Step 23:
Open out the border away from the center block. The two seam allowances should line up without overlaps or gaps. Press them flat.
(Click Image to Enlarge)
Step 24:

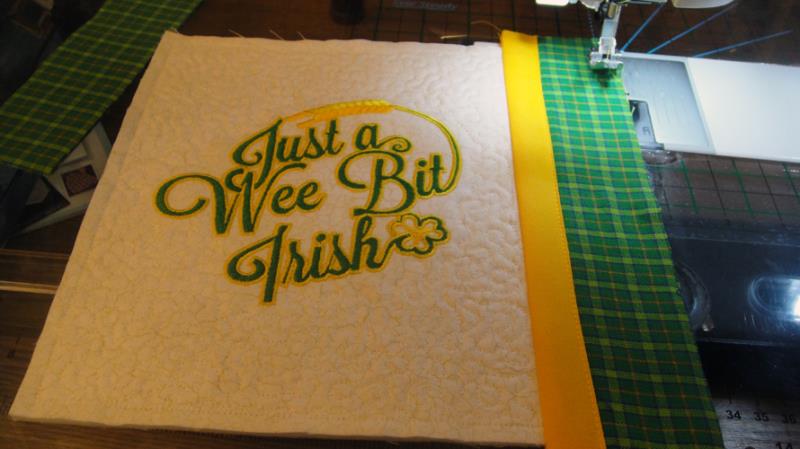

Press the top sashing strip over the seam allowances and edge stitch the folded edge over the seam allowances.
(Click Image to Enlarge)

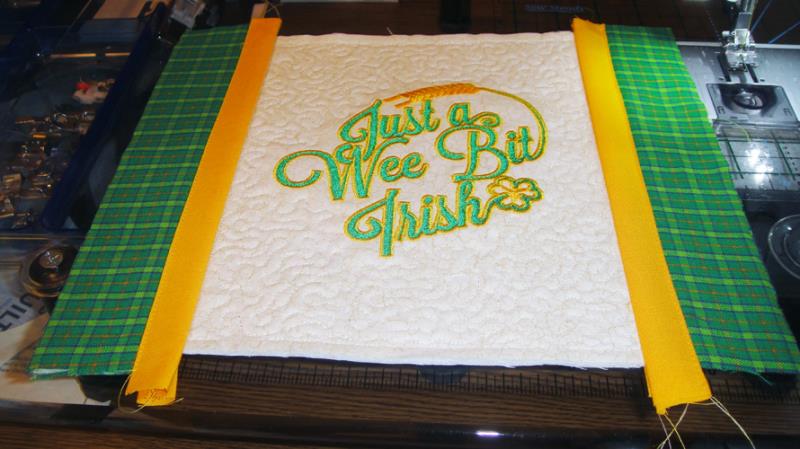

Step 25:
Repeat Steps 20 through 24 to attach a 10” border strip with the sashing to the left side of the center block.
(Click Image to Enlarge)

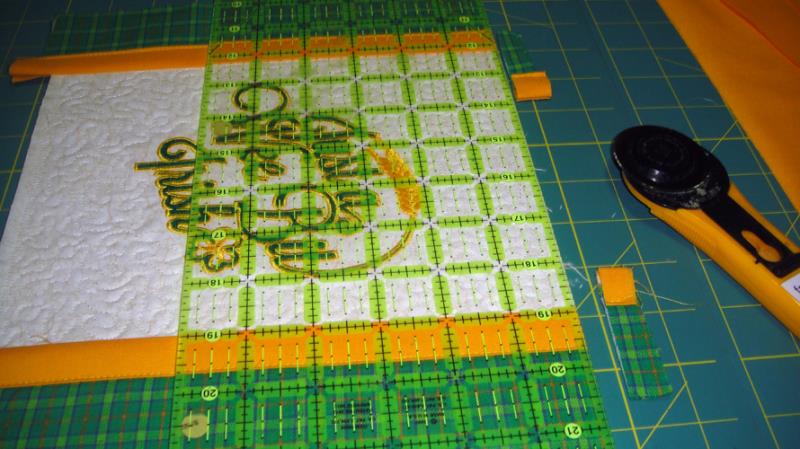

Step 26:
Trim the excess border and sashing strips from the top and the bottom of the block.
(Click Image to Enlarge)

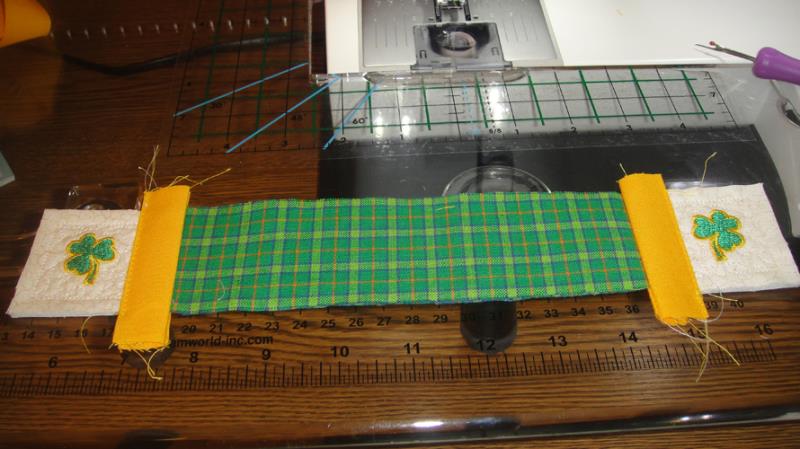

Step 27:
Join the corner blocks to the 7 ¼” top and bottom border strips using the same techniques. Arrange the corner blocks so that the shamrock curves to the left on the left side of the quilt and curve to the right on the right side of the block.
(Click Image to Enlarge)

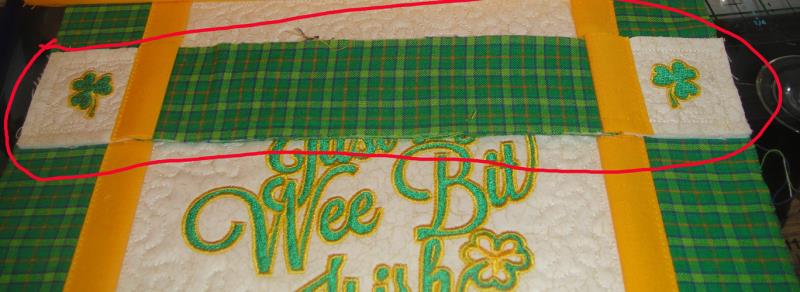

Step 28:
Lay your bottom and top completed border strips over the center block just to be sure that the sashing strips will line up with the sashing on the center panel when they are joined to the quilt.
(Click Image to Enlarge)

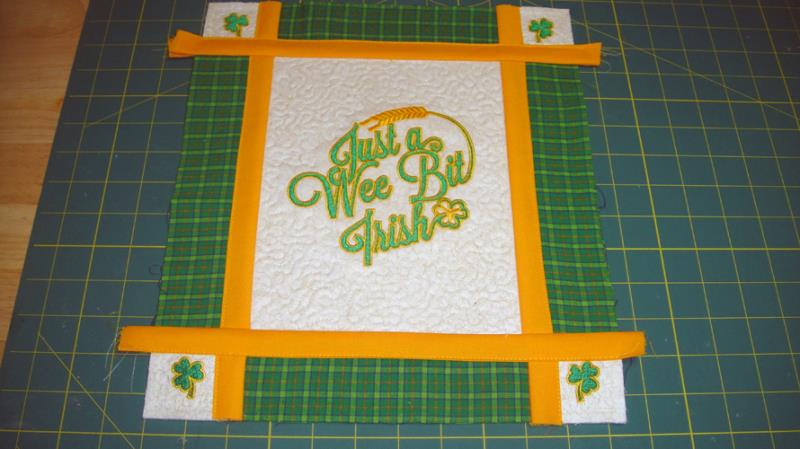

Step 29:

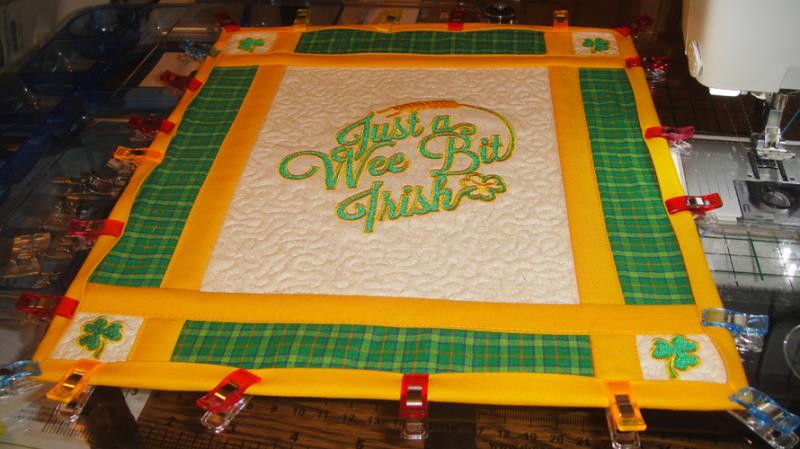

Join the completed top and bottom borders to the center panel using the techniques in Step 20 through 24.
(Click Image to Enlarge)

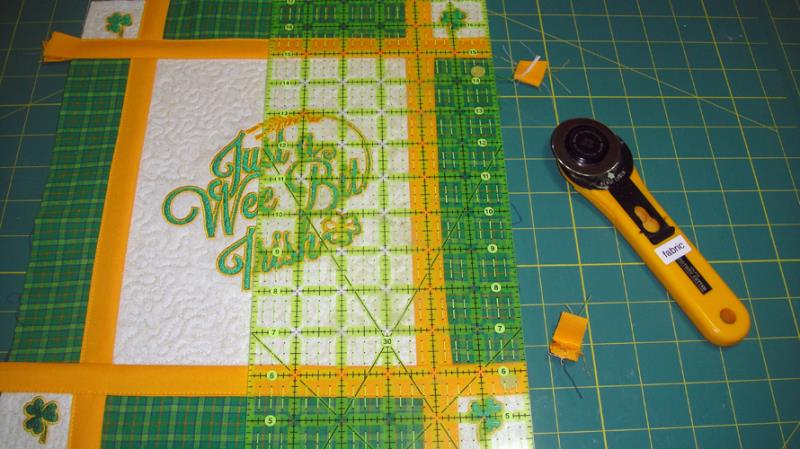

Step 30:
Square up your mini quilt and trim off the excess sashing from the sides.
